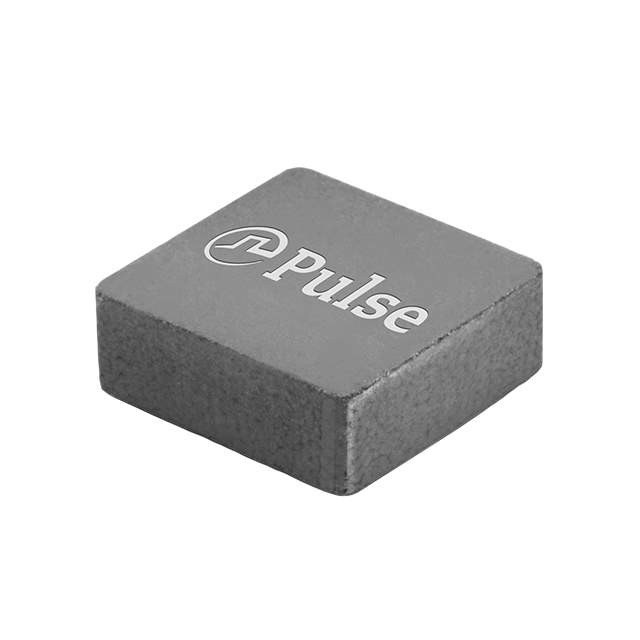

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 20 Weeks
Features Shielded Molded Inductor 23.1mOhm Max Nonstandard -
Manufacturer Pulse
Series PA5003.XXXNLT
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package Nonstandard
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 553-4089-2, 553-4089-1, 553-4089-6
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 929960-PA5003.332NLT
Ultra Librarian 3D Model Ultra Librarian PA5003.332NLT CAD Model

Description

The Pulse 929960-PA5003.332NLT is a non-standard surface mount shielded molded inductor that is designed for high-performance applications.

  • Mounting: Surface mount
  • Type: Shielded molded inductor
  • Operating Temperature Range: -40°C to 125°C
  • Inductance (Maximum): 23.1mOhm non-standard inductance
  • Package: Reel
  • Quantity per Package: 2000
  • MSL Level: 1 (unlimited lifetime)
  • Estimated Production Lead Time: 20 weeks
  • REACH: REACH unaffected
  • ECCN: EAR99
