Same model may have multiple batches, images only for reference.

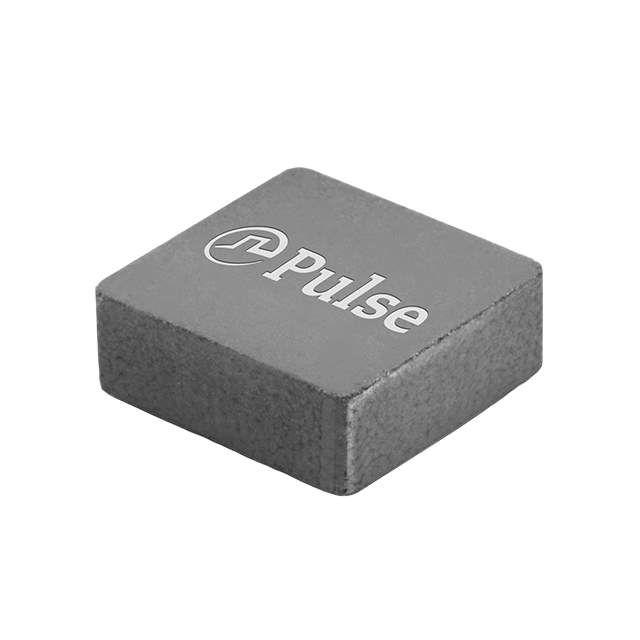

PA5003.472NLT Real Image
Same model may have multiple batches, images only for reference.

PA5003.472NLT

Part No PA5003.472NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 4.7UH 5.9A 36.3MOHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 20 Weeks
Features Shielded Molded Inductor 36.3mOhm Max Nonstandard -
Manufacturer Pulse
Series PA5003.XXXNLT
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package Nonstandard
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 553-4090-6, 553-4090-2, 553-4090-1
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 929961-PA5003.472NLT
Ultra Librarian 3D Model Ultra Librarian PA5003.472NLT CAD Model

Description

The Pulse PA5003.XXXNLT series is a shielded molded inductor that is designed to operate within a temperature range of -40°C to 125°C.

  • Series: PA5003.XXXNLT
  • Type: Shielded Molded Inductor
  • Operating Temperature: -40°C to 125°C
  • Maximum Resistance: 36.3mOhm
  • Package: Nonstandard
  • Mounting: Reel
  • Applications: Power supplies, DC-DC converters, and filtering circuits
  • Popularity: High
  • Supply and Demand Status: Balanced
  • ECCN: EAR99
  • REACH Regulations: Unaffected
  • Estimated Production Lead Time: 20 weeks
  • Units per Package: 2000
