Same model may have multiple batches, images only for reference.

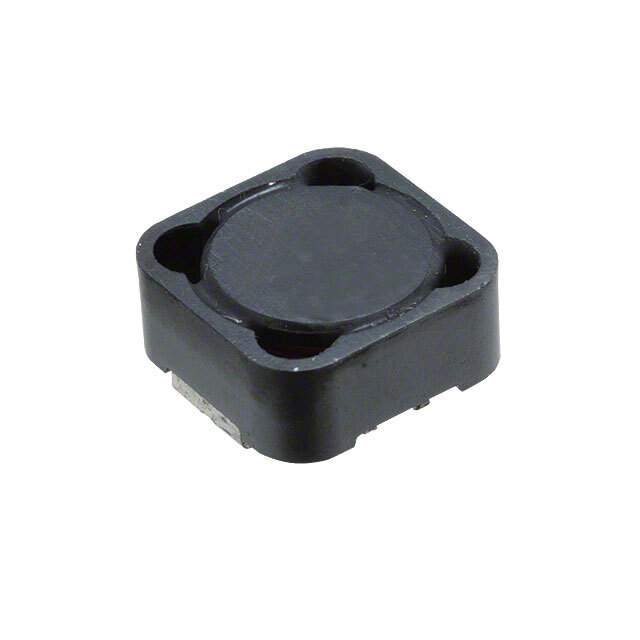

P1170.223NLT Real Image
Same model may have multiple batches, images only for reference.

P1170.223NLT

Part No P1170.223NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 22UH 3A 45 MOHM SMD
Datasheet
P1170.223NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 13 Weeks
Features 22 µH Shielded Wirewound Inductor 3 A 45mOhm Max Nonstandard -
Manufacturer Pulse
Series P1170NL
Package Reel - TR
Operating Temperature Range -40°C ~ 130°C
Mounting Surface Mount
Package Nonstandard
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 553-1964-6, P1170.223NLT-ND, 553-1964-2, 553-1964-1, P1170223NLT, P1170.223NL
Quantity per package 500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 929789-P1170.223NLT
Ultra Librarian 3D Model Ultra Librarian P1170.223NLT CAD Model

Description

The Pulse P1170NL series inductor with a Win Source Part Number of 929789-P1170.223NLT is a high-quality component that is designed to provide superior performance in a variety of applications.

  • Description: 22 µH shielded wirewound inductor
  • Current: up to 3 A
  • Maximum Resistance: 45mOhms
  • Package: nonstandard
  • Package Type: reel - TR package
  • Mounting Type: surface mount installation
  • Category: Inductors
  • Supply and Demand Status: balanced
  • Pieces per Package: 500
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 13 weeks
  • REACH Status: unaffected
  • HTSUS code: 8504.50.4000
  • Other Part Numbers: 553-1964-6, P1170.223NLT-ND, 553-1964-2, 553-1964-1, P1170223NLT, and P1170.223NL
