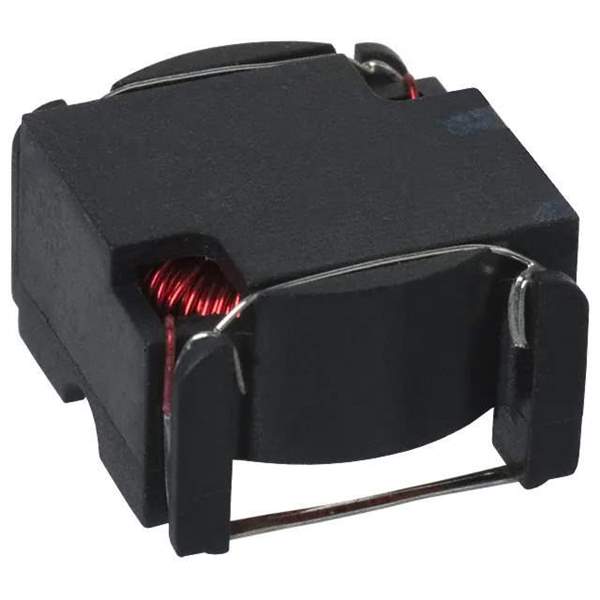

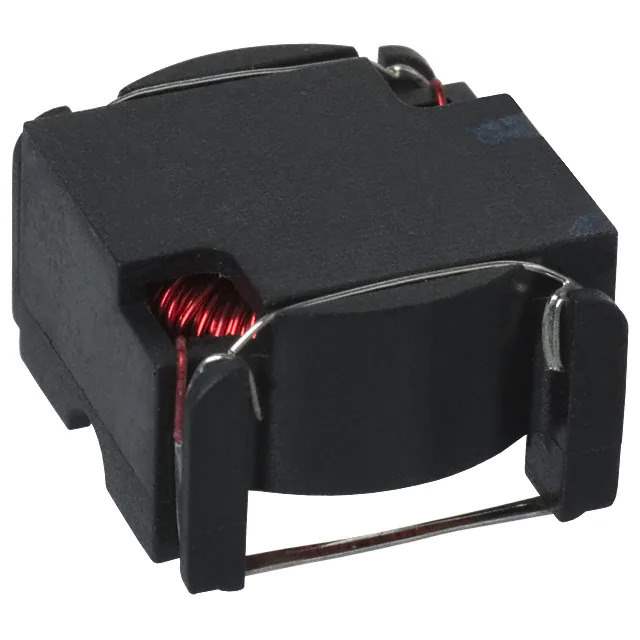

Same model may have multiple batches, images only for reference.

PE-53652NL

Name: PE-53652NL
Brand: Pulse
SKU: 654136
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PE-53652NL
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 9UH 5.5A 28 MOHM SMD
Datasheet	PE-53652NL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Pulse
Series	SLIC
Package	Bulk
Product Status	Active
Type	Toroidal
Inductance	9 µH
Current Rating (Amps)	5.5 A
Shielding	Unshielded
DC Resistance (DCR)	28mOhm Max
Temperature Range - Operating	-40°C ~ 130°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.620" L x 0.600" W (15.75mm x 15.24mm)
Height - Seated (Max)	0.390" (9.91mm)
Standard Package	30 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	654136-PE-53652NL
Ultra Librarian 3D Model	Ultra Librarian PE-53652NL CAD Model

Alternative Products

Description

The 654136-PE-53652NL is a fixed inductor designed for use in electronic devices. It belongs to the Inductors, Coils, Chokes - Fixed Inductors category and is part of the SLIC series.

Inductor Type: fixed
Category: Inductors, Coils, Chokes - Fixed Inductors
Series: SLIC
Type: Toroidal
Package: bulk
Shielding: unshielded
Size/Dimension: 0.620" L x 0.600" W (15.75mm x 15.24mm)
Inductance: 9 μH
Height Seated (Max): 0.390" (9.91mm)
Standard Package: 30 pieces
DC Resistance (DCR): 28mOhm max
Mounting Type: surface mount
Operating Temperature: -40°C to 130°C
MSL Level: 1 (Unlimited)
Current Rating (Amps): 5.5 A
REACH Status: REACH unaffected
HTSUS Code: 8504.50.4000
Manufacturer: Pulse
Product Status: active
