Same model may have multiple batches, images only for reference.

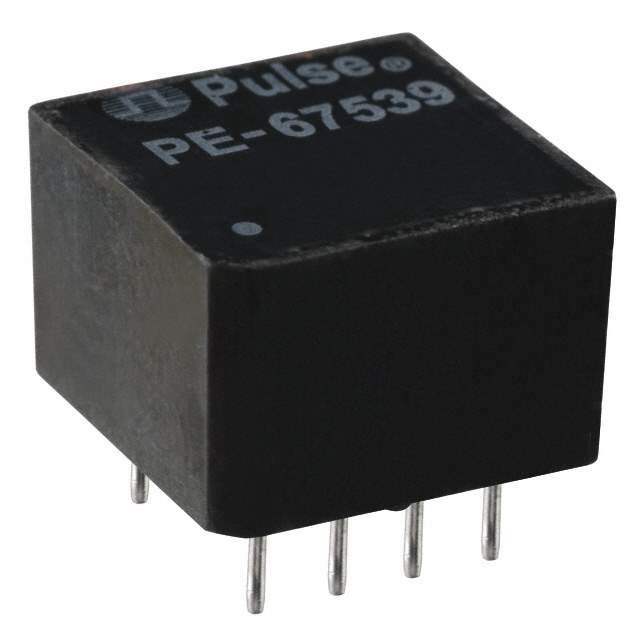

PE-67539 Real Image
Same model may have multiple batches, images only for reference.

PE-67539

Part No PE-67539
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 4LN TH
Datasheet
PE-67539 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Bulk
Status Obsolete(EOL)
Filter Type Signal Line
Number of Lines 4
DC Resistance (DCR) (Max) 600 mOhm
Mounting Through Hole
Height (Max) 0.375" (9.53mm)
Dimension Vertical, 8 PC Pin
Win Source Part Number 045707-PE-67539
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-67539 CAD Model

Description

The Pulse Electronics Corporation 045707-PE-67539 is a vertical, 8 PC pin filter with a height of 0.375" (9.53mm).

  • Filter Type: Signal Line Filter
  • Lines: 4
  • DC Resistance: 600 mOhm
  • Product Status: Obsolete (EOL)
  • Supply and Demand Status: Limited
  • Mounting Orientation: Vertical
  • Pin Count: 8 PC
  • Height: 0.375" (9.53mm)
