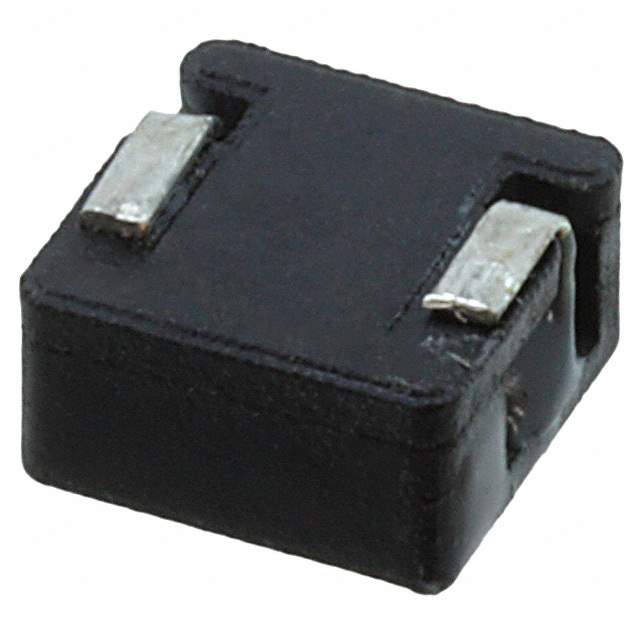

Same model may have multiple batches, images only for reference.

PG0083.472NL

Name: PG0083.472NL
Brand: Pulse
SKU: 1327632
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PG0083.472NL
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 4.5A 38 MOHM SMD / 4.7 µH Unshielded Wirewound Inductor 4.5 A 38mOhm Max Nonstandard
Datasheet	PG0083.472NL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Pulse Electronics
Packaging	Tray
Type	Wirewound
Inductance	4.7 µH
Tolerance	±25%
Current Rating (Amps)	4.5 A
Current - Saturation (Isat)	8A
Shielding	Unshielded
DC Resistance (DCR)	38mOhm Max
Temperature Range - Operating	-40°C ~ 95°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Max)	0.157" (4.00mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	-PG0083.472NL,553-3652
Standard Package	160
Win Source Part Number	1327632-PG0083.472NL
Ultra Librarian 3D Model	Ultra Librarian PG0083.472NL CAD Model

Alternative Products

Description

The PG0083.472NL is a fixed inductor manufactured by Pulse Electronics.

Type: Wirewound
Shielding: Unshielded
Size/Dimension: 0.268" L x 0.268" W (6.80mm x 6.80mm)
Inductance: 4.7 μH
Height: 0.157" (4.00mm)
Tolerance: ±25%
DC Resistance (DCR): 38mOhm Max
Current Rating: 4.5A
RoHS compliant: Yes
Temperature Range: -40°C to 95°C
