Product photo

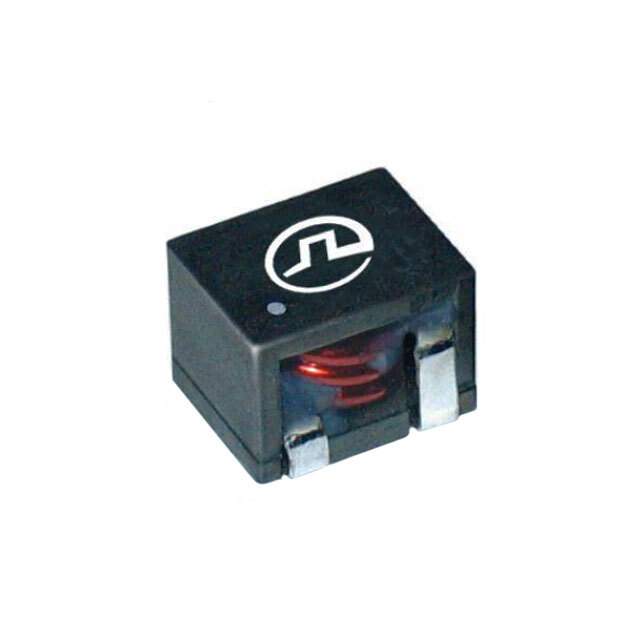

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series PG1096NL
Package Tape & Reel
Type Wirewound
Inductance 9 µH
Tolerance ±20%
Current Rating (Amps) 24.5 A
Current - Saturation (Isat) 28A
Shielding Unshielded
DC Resistance (DCR) 3.15mOhm Max
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 1.024" L x 1.024" W (26.00mm x 26.00mm)
Height - Seated (Max) 0.583" (14.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 553-3726-6,-PG1096.103NLT,PG1096.103NLT-ND,553-3726-2,553-3726-1
Standard Package 60
Win Source Part Number 1007216-PG1096.103NLT
Ultra Librarian 3D Model Ultra Librarian PG1096.103NLT CAD Model

Description

The Pulse Electronics Power PG1096.103NLT is a fixed inductor that has an inductance of 9μH and a tolerance of ±20%.

  • Manufacturer: Pulse Electronics Power
  • Part Name: PG1096.103NLT
  • Type: Fixed Inductor
  • Inductance: 9μH
  • Tolerance: ±20%
  • DC Resistance: 3.15mOhm Max
  • Operating Temperature: -40°C to 130°C
  • Package: Tape & Reel
  • Standard Package: 60
  • Category: Inductor, Coil, Choke
  • ECCN: EAR99
  • Current Rating (Amps): 24.5A
  • Inductance Frequency-Test: 100 kHz
  • Dimension: 1.024" L x 1.024" W (26.00mm x 26.00mm)
  • Mounting: SMD (SMT)
  • HTSUS: 8504.50.4000
