Products specifications

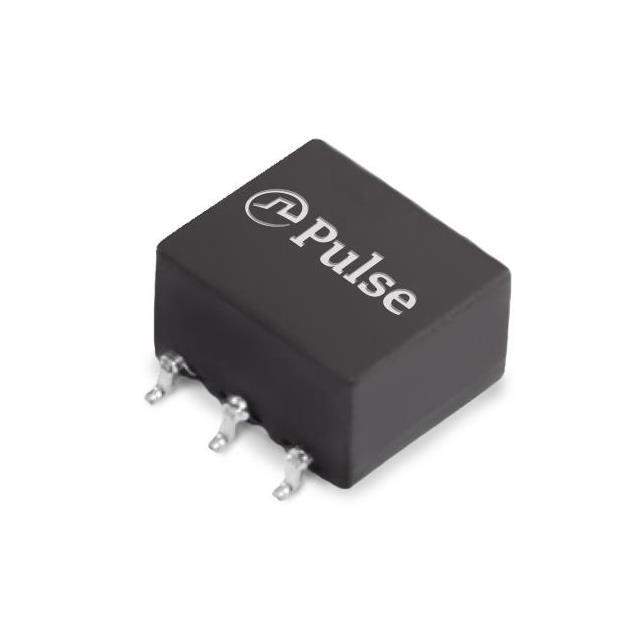

Win Source Part Number 2000731-PM2180.034NL
Package Tray
Product Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance 1.02 mH
ET (Volt-Time) 22VµS
Turns Ratio - Primary 3:4CT
Mounting Type Surface Mount
Size / Dimension 0.319" L x 0.280" W (8.10mm x 7.10mm)
Height - Seated (Max) 0.200" (5.08mm)
Operating Temperature -40°C ~ 125°C
Grade -
Win Source Part Number Cross
Manufacturer Pulse
Category Transformers
Packaging Tray
Operating Temperature Range -40°C ~ 125°C
Ultra Librarian 3D Model Ultra Librarian PM2180.034NL CAD Model

Description

The PM2180.034NL is a common mode choke manufactured by Pulse Electronics. It is designed to suppress common mode noise in electronic circuits, typically found in power supplies, communication lines, and signal interfaces. Common mode chokes are passive components that attenuate noise signals that are common to multiple conductors, while allowing differential signals to pass through with minimal attenuation.

Applications

  • Power Supplies: Used in AC-DC and DC-DC power supplies to reduce common mode noise generated by switching circuits.
  • Communication Lines: Suppresses noise on data and signal lines, improving signal integrity in Ethernet, USB, and other communication interfaces.
  • Motor Drives: Reduces noise generated by motor drives, preventing interference with other electronic equipment.
  • Inverters: Minimizes noise emissions from inverters used in solar power systems and other applications.
  • LED Lighting: Suppresses noise generated by LED drivers, ensuring compliance with EMC standards.

Features

  • Common Mode Noise Suppression: Effectively attenuates common mode noise signals.
  • Low Differential Mode Attenuation: Allows differential signals to pass through with minimal signal loss.
  • High Impedance: Presents a high impedance to common mode currents, effectively blocking noise.
  • Compact Size: Small footprint for space-saving installation.
  • Through-Hole Mounting: Designed for through-hole mounting on printed circuit boards.
  • High Current Capability: Capable of handling significant current flow without saturation.

Benefits

  • Improved EMC Performance: Reduces electromagnetic interference (EMI) and improves electromagnetic compatibility (EMC).
  • Enhanced Signal Integrity: Minimizes noise on signal lines, improving data transmission accuracy.
  • Reduced Noise Emissions: Reduces noise emissions from electronic equipment, complying with regulatory standards.
  • Increased System Reliability: Prevents noise from interfering with sensitive electronic circuits.
  • Simplified Design: Easy to integrate into existing circuit designs.

Technical Specifications (Typical):

  • Inductance: (Consult the datasheet for specific value)
  • Rated Current: (Consult the datasheet for specific value)
  • DC Resistance: (Consult the datasheet for specific value)
  • Operating Temperature: (Consult the datasheet for specific value)
  • Package Type: Through-Hole
