SM91534AL-E Bourns Inc. – Price, Stock & Datasheet

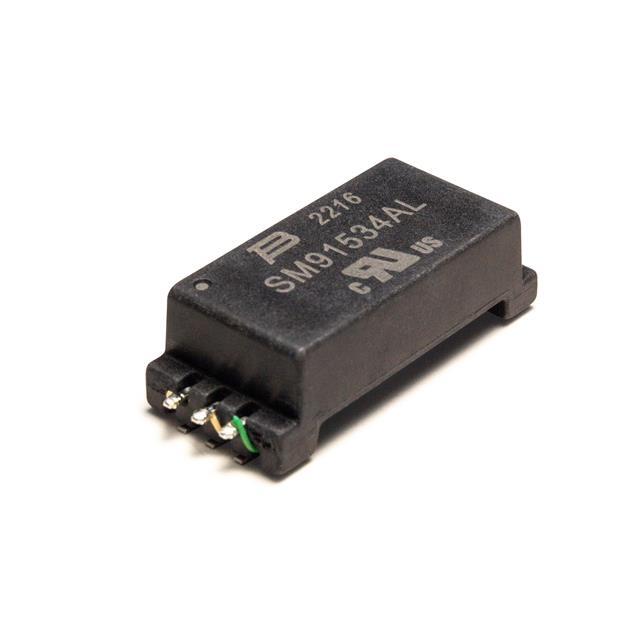

Same model may have multiple batches, images only for reference.

SM91534AL-E

Part No SM91534AL-E
Manufacturer Bourns Inc.
Catalog Pulse Transformers
Description TRANSF BMS CMC 6.4KVDC 6 PIN
Datasheet
SM91534AL-E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category TransformersPulse Transformers
Manufacturer Bourns Inc.
Series SM
Part Status Active
Transformer Type Battery Management
Inductance 150μH
Mounting Type Surface Mount
Size / Dimension 1.102" L x 0.492" W (28.00mm x 12.50mm)
Height - Seated (Max) 0.374" (9.50mm)
Operating Temperature -40°C ~ 125°C
Grade Automotive
Qualification AEC-Q200
Ultra Librarian 3D Model Ultra Librarian SM91534AL-E CAD Model
