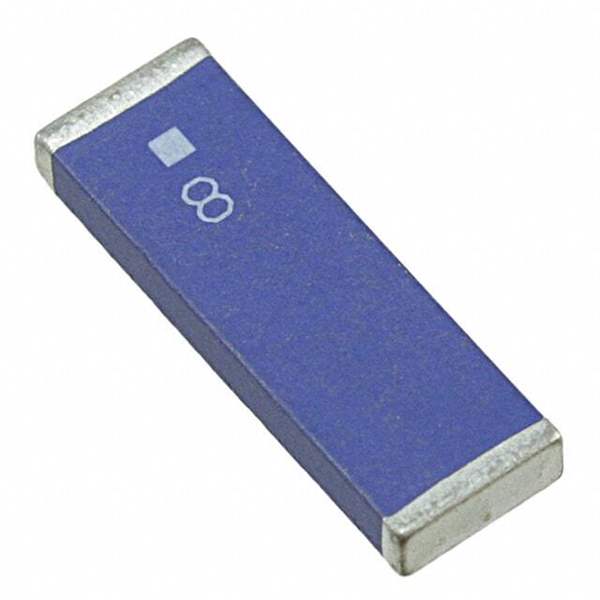

ANT1204LL05R0915A
Same model may have multiple batches, images only for reference.

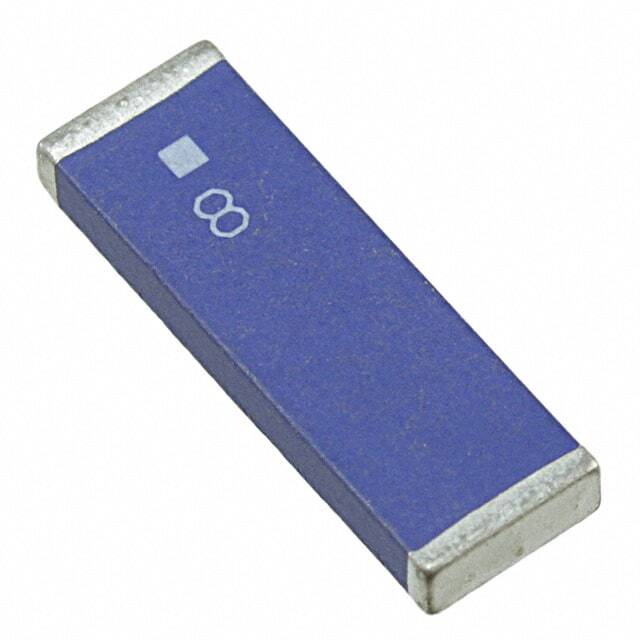

ANT1204LL05R0915A

Part No ANT1204LL05R0915A
Manufacturer PulseLarsen Antennas
Catalog RF Antennas
Description RF ANT 915MHZ CHIP SOLDER SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Estimated Pruduction Lead Time 22 Weeks
Features 915MHz ZigBee™ Chip RF Antenna 905MHz ~ 925MHz 3.32dBi Solder Surface Mount
Manufacturer PulseLarsen Antennas
Package Reel - TR
Mounting Surface Mount
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Other Part Number CAN4311759050911K, 311-1525-6, 311-1525-1, 311-1525-2
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 865743-ANT1204LL05R0915A
Ultra Librarian 3D Model Ultra Librarian ANT1204LL05R0915A CAD Model

Description

The PulseLarsen Antennas 865743-ANT1204LL05R0915A is a surface mount RF antenna designed for 915MHz ZigBee™ chip applications. The antenna has a frequency range of 905MHz ~ 925MHz and a gain of 3.32dBi.

  • Frequency: 915MHz
  • Application: ZigBee™ Chip
  • Frequency Range: 905MHz ~ 925MHz
  • Gain: 3.32dBi
  • Mounting Type: Surface Mount
  • Packaging: Reel-TR
  • Quantity per Package: 1000
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8529.10.9100
  • Estimated Production Lead Time: 22 weeks
  • Category: RF/IF and RFID
