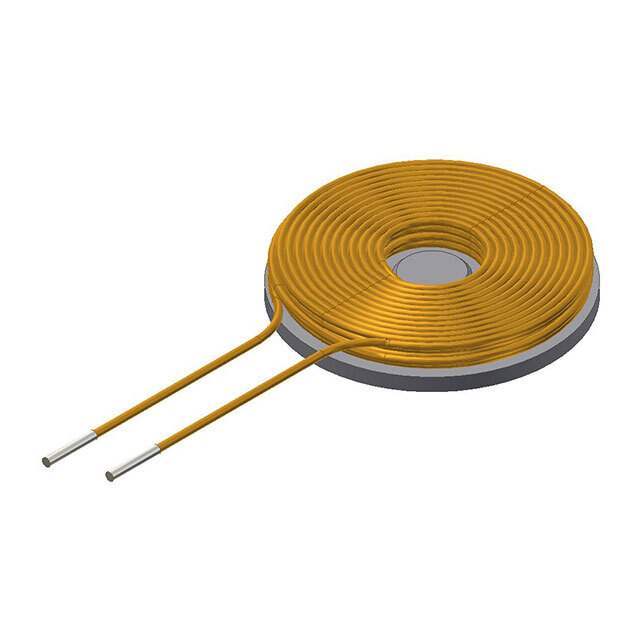

WR151580-48F2-G

Part No WR151580-48F2-G
Manufacturer TDK Corporation
Catalog Wireless Charging Coils
Description RX 1 COIL 4 LYR 27.1UH
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309479-WR151580-48F2-G
Manufacturer TDK Corporation
Category Inductors, Coils, Chokes>Wireless Charging Coils
Packaging Tray
Part Status Active
Function Receiver
Type 1 Coil, 4 Layer
Inductance 27.1µH
DC Resistance (DCR) 500mOhm
Size / Dimension 0.59" Dia x 0.10" H (15.0mm x 2.6mm)
Ultra Librarian 3D Model Ultra Librarian WR151580-48F2-G CAD Model

Description

1 Coil, 4 Layer 27.1µH Wireless Charging Coil Receiver 500mOhm
