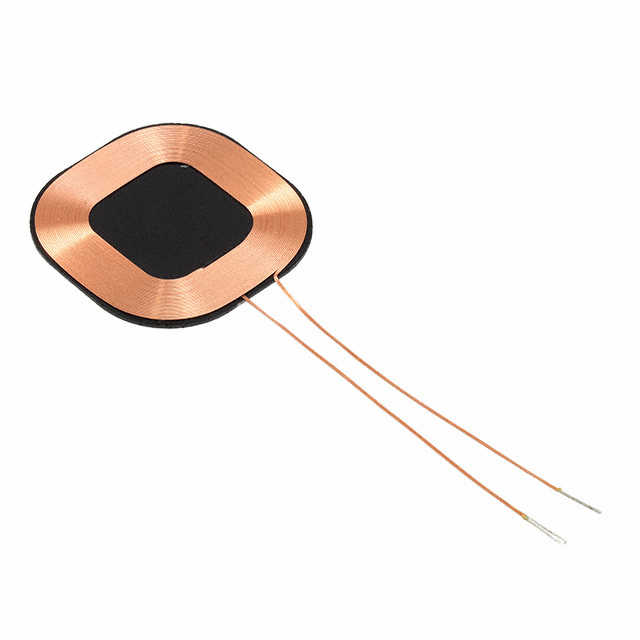

WR303050-15F5-G TDK Corporation – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

WR303050-15F5-G

Part No WR303050-15F5-G
Manufacturer TDK Corporation
Catalog Wireless Charging Coils
Description RX 1 COIL 2 LYR 12.3UH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, ChokesWireless Charging Coils
Manufacturer TDK Corporation
Series WR
Packaging Tray
Part Status Active
Function Receiver
Type 1 Coil, 2 Layer
Inductance 12.3μH
DC Resistance (DCR) 410mOhm
Size / Dimension 1.18" L x 1.16" W x 0.03" H (30.0mm x 29.6mm x 1.0mm)
Ultra Librarian 3D Model Ultra Librarian WR303050-15F5-G CAD Model
