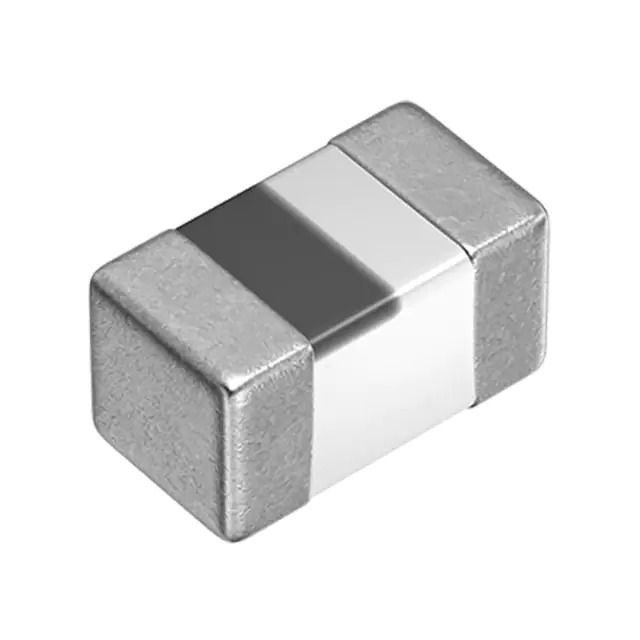

Same model may have multiple batches, images only for reference.

MLG0402P2N1BT000

Name: MLG0402P2N1BT000
Brand: TDK Corporation
SKU: 1369491
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MLG0402P2N1BT000
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	FIXED IND 2.1NH 200MA 700MOHM SM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	TDK Corporation
Series	MLG-P
Package	Tape & Reel
Product Status	Active
Type	Multilayer
Material - Core	Non-Magnetic
Inductance	2.1 nH
Tolerance	±0.1nH
Current Rating (Amps)	200 mA
Current - Saturation (Isat)	-
Shielding	Unshielded
DC Resistance (DCR)	700mOhm Max
Q @ Freq	8 @ 500MHz
Frequency - Self Resonant	8GHz
Ratings	-
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	500 MHz
Mounting Type	Surface Mount
Package / Case	01005 (0402 Metric)
Supplier Device Package	01005 (0402 Metric)
Size / Dimension	0.016" L x 0.008" W (0.40mm x 0.20mm)
Height - Seated (Max)	0.009" (0.22mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1369491-MLG0402P2N1BT000
Ultra Librarian 3D Model	Ultra Librarian MLG0402P2N1BT000 CAD Model

Description

The 1369491-MLG0402P2N1BT000 is a surface mount multilayer inductor from TDK Corporation.

Series: MLG-P
Size: 0.016" L x 0.008" W (0.40mm x 0.20mm)
Height: 0.009" (0.22mm)
Inductance: 2.1 nH
Current Rating: 200 mA
DC Resistance: 700mOhm max
Tolerance: ±0.1nH
Q Value: 8 @ 500MHz
Self-Resonance Frequency: 8GHz
Shielding: Unshielded
Core: Non-Magnetic
Mounting Type: Surface Mount
Packaging: Tape and Reel
Operating Temperature: -55°C to 125°C
REACH: Compliant
ECCN: EAR99
