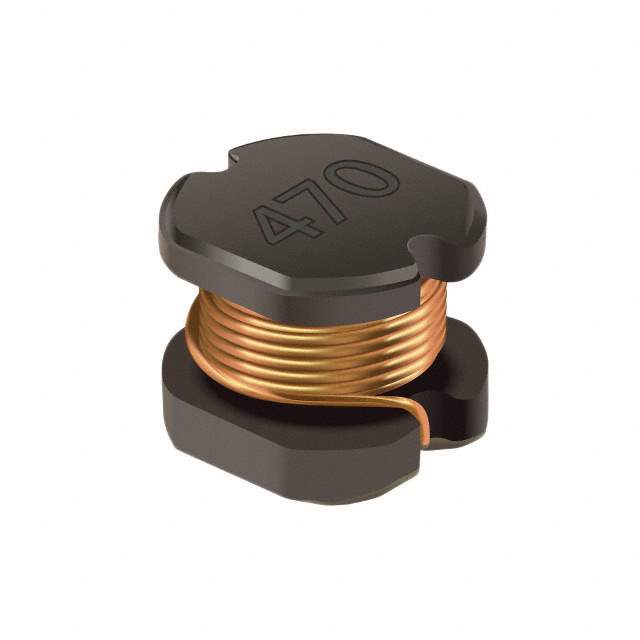

Same model may have multiple batches, images only for reference.

SDE0604A-3R3M

Name: SDE0604A-3R3M
Brand: Bourns Inc.
SKU: 1274922
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SDE0604A-3R3M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SDE0604A-3R3M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SDE0604A
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	3.3 µH
Tolerance	±20%
Current Rating (Amps)	3.8 A
Current - Saturation (Isat)	3.5A
Shielding	Unshielded
DC Resistance (DCR)	60mOhm Max
Frequency - Self Resonant	50MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max)	0.189" (4.80mm)
Base Product Number	SDE0604A
Other Names	SDE0604A-3R3MCT,SDE0604A-3R3MDKR,SDE0604A-3R3MTR
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274922-SDE0604A-3R3M
Ultra Librarian 3D Model	Ultra Librarian SDE0604A-3R3M CAD Model

Alternative Products

Description

The SDE0604A-3R3M from Bourns Inc. is a fixed inductor designed for electronic circuits.

Series: SDE0604A
Core Type: Drum Core, Wirewound
Shielding: Unshielded
Inductance: 3.3 µH
Tolerance: ±20 percent
Rating: AEC-Q200
Temperature Range: -40°C to 125°C
Packaging: Tape and Reel
Standard Package: 1,000
Package/Case: Non-standard
Mounting: SMD (SMT)
DC Resistance: 60mOhm Max
Current Rating: 3.8A
