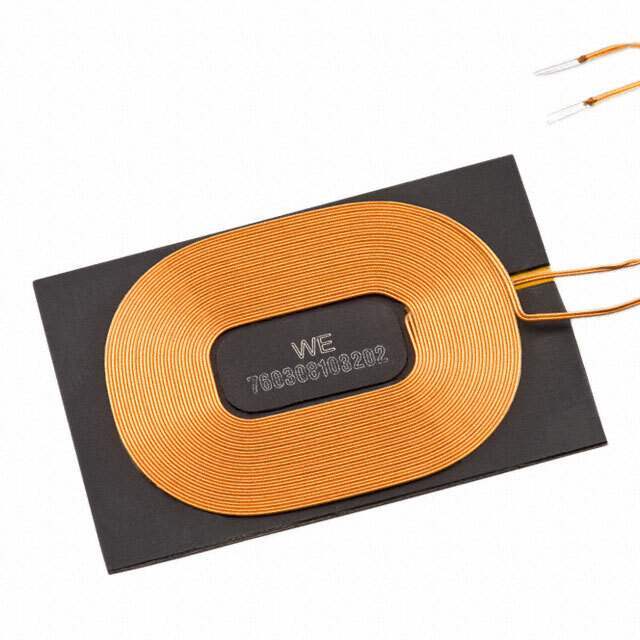

760308103202

Part No 760308103202
Manufacturer Wurth Electronics Inc
Catalog Wireless Charging Coils
Description RX 1 COIL 1 LYR BIFILAR 12UH
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309472-760308103202
Manufacturer Würth Elektronik
Category Inductors, Coils, Chokes>Wireless Charging Coils
Packaging Tray
Part Status Active
Function Receiver
Type 1 Coil, 1 Layer, Bifilar
Inductance 12µH
Tolerance ±10%
DC Resistance (DCR) 160mOhm
Q @ Freq 33 @ 125kHz
Ultra Librarian 3D Model Ultra Librarian 760308103202 CAD Model

Description

1 Coil, 1 Layer, Bifilar 12µH Wireless Charging Coil Receiver 160mOhm
