Same model may have multiple batches, images only for reference.

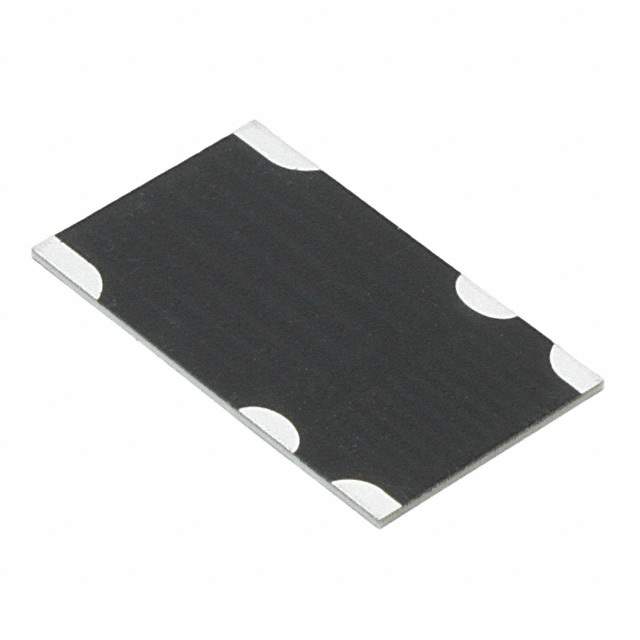

ANT2112A010B0918A Real Image
Same model may have multiple batches, images only for reference.

ANT2112A010B0918A

Part No ANT2112A010B0918A
Manufacturer PulseLarsen Antennas
Catalog RF Antennas
Description RF ANT 900MHZ/1.8GHZ CHIP SLD / 900MHz, 1.8GHz Chip RF Antenna 885MHz ~ 915MHz, 1.715GHz ~ 1.885GHz 0.5dBi, 1dBi Solder Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr PulseLarsen Antennas
Series 2112
Package Bulk
Frequency Group UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 900MHz, 1.8GHz
Frequency Range 885MHz ~ 915MHz, 1.715GHz ~ 1.885GHz
Antenna Type Chip
Number of Bands 2
Return Loss -6.543dB, -9.217dB
Gain 0.5dBi, 1dBi
Power - Max 4 W
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.020" (0.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Other Names CAN4313284109181B,311-1535
Standard Package 50
Win Source Part Number 1000857-ANT2112A010B0918A
Ultra Librarian 3D Model Ultra Librarian ANT2112A010B0918A CAD Model

Description

This RF antenna chip is from the 2112 series.

  • Series: 2112
  • Maximum Power: 4W
  • Frequency Range: 885MHz to 915MHz and 1.715GHz to 1.885GHz
  • Package: Bulk
  • Mounting: SMD (SMT)
  • Bands: Two
  • Gain: 0.5dBi and 1dBi
  • Frequency Group: UHF (300MHz to 1GHz) and UHF (1GHz to 2GHz)
  • Frequency: 900MHz and 1.8GHz
  • Antenna Type: Chip
  • VSWR: No VSWR
  • Manufacturer: PulseLarsen Antennas
  • Also Known As: CAN4313284109181B and 311-1535
