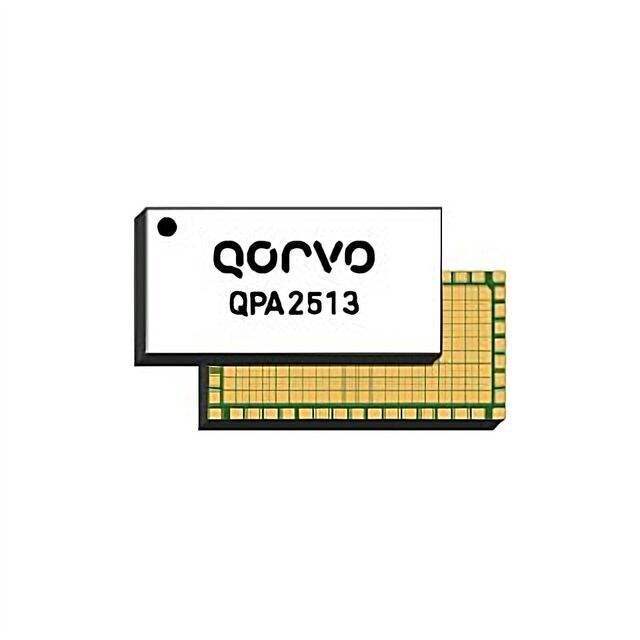

QPA2513

Part No QPA2513
Manufacturer Qorvo US Inc.
Catalog RF Amplifiers
Description 3.1-3.5 GHZ,125W,50V GAN ON SIC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

The QPA2513 is a 2-stage S-Band internally matched GaN Power Amplifier Module. The QPA2513 operates at pulsed RF CW in frequency range 3.1–3.5 GHz providing typically 51dBm of saturated output power with 30dB of large-signal gain and 62% of power added efficiency.
The QPA2513 is matched to 50 Ohms with integrated bias circuits and DC blocking capacitor at input port. The QPA2513 in a SMD package that provides good thermal properties and ideal for use in both commercial and military radar systems.
