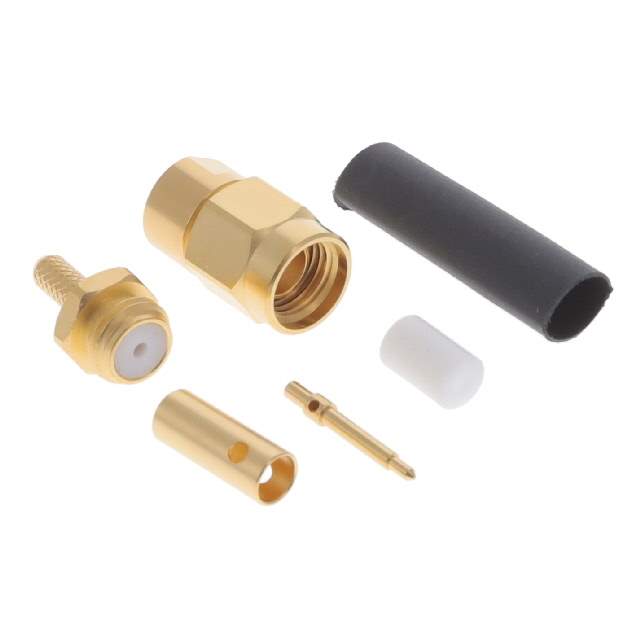

R125073000 Real Image
Same model may have multiple batches, images only for reference.

R125073000

Part No R125073000
Manufacturer Radiall USA, Inc.
Catalog Coaxial Connectors (RF)
Description SMA / STRAIGHT PLUG CRIMP OR SOL / SMA Connector Plug, Male Pin 50Ohm Free Hanging (In-Line) Crimp or Solder
Datasheet
R125073000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Radiall USA, Inc.
Package Box
Connector Style SMA
Connector Type Plug, Male Pin
Contact Termination Crimp or Solder
Shield Termination Clamp
Impedance 50Ohm
Mounting Type Free Hanging (In-Line)
Cable Group RG-174, 316
Fastening Type Threaded
Frequency - Max 12.4 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Brass
Body Material Stainless Steel
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 500 V
Mating Cycles 100
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4010
Other Names R125.073.000,2266-R125073000,2201-R125073000
Standard Package 100
Win Source Part Number 1222673-R125073000
Ultra Librarian 3D Model Ultra Librarian R125073000 CAD Model

Description

The electronic component with the Win Source Part Number 1222673-R125073000 is a connector, interconnects>coaxial connector (RF) that has a plug, male pin connector type from Radiall USA, Inc.

  • Connector Type: Plug, Male Pin
  • Fastening Type: Threaded
  • Package: Box
  • Reliability: Reliable and efficient part
  • Impedance: 50Ohm
  • Voltage Rating: 500V
  • Housing Color: Gold
  • Frequency Range: Up to 12.4 GHz
  • Cable Compatibility: RG-174 and 316 cable groups
