Same model may have multiple batches, images only for reference.

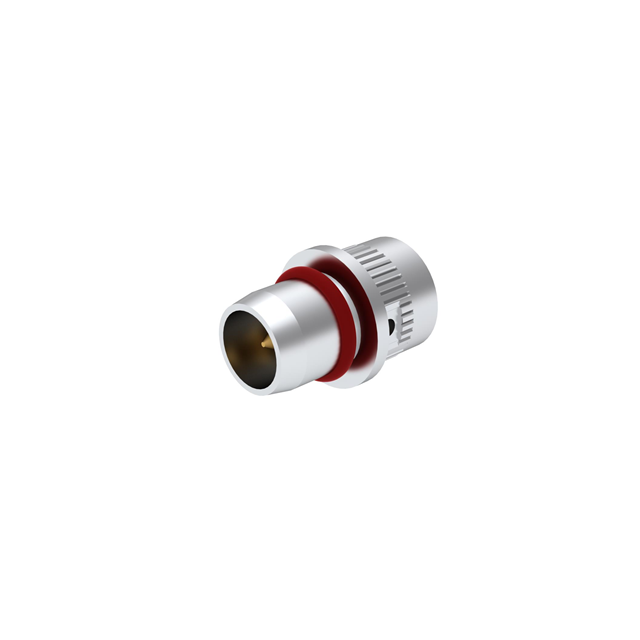

R128595001 Real Image
Same model may have multiple batches, images only for reference.

R128595001

Part No R128595001
Manufacturer Radiall USA, Inc.
Catalog Coaxial Connectors (RF)
Description BMA / PRESS MOUNT PLUG RECEPTACL / BMA Connector Plug, Male Pin 50Ohm Panel Mount Solder
Datasheet
R128595001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Radiall USA, Inc.
Package Bulk
Connector Style BMA
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Press-Fit
Impedance 50Ohm
Mounting Type Panel Mount
Fastening Type Snap-On
Frequency - Max 22 GHz
Number of Ports 1
Housing Color Silver
Ingress Protection IP54 - Dust Protected
Center Contact Material Brass
Body Material Stainless Steel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 125°C
Voltage Rating 500 V
Mating Cycles 1000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4010
Other Names 2201-R128595001,R128.595.001
Standard Package 25
Win Source Part Number 1228519-R128595001
Ultra Librarian 3D Model Ultra Librarian R128595001 CAD Model

Description

The Radiall USA, Inc. 2201-R128595001 is a connector with a male pin plug.

  • Manufacturer: Radiall USA, Inc.
  • Connector Type: Coaxial (RF)
  • Connector Gender: Male
  • Frequency Range: Up to 22 GHz
  • Impedance: 50Ohm
  • Ingress Protection: IP54 - Dust Protected
  • Voltage Rating: 500 V
  • Mounting Type: Panel Mount
  • Fastening Type: Snap-On
  • Packaging: Bulk
  • Package Quantity: 25
  • ECCN: EAR99
