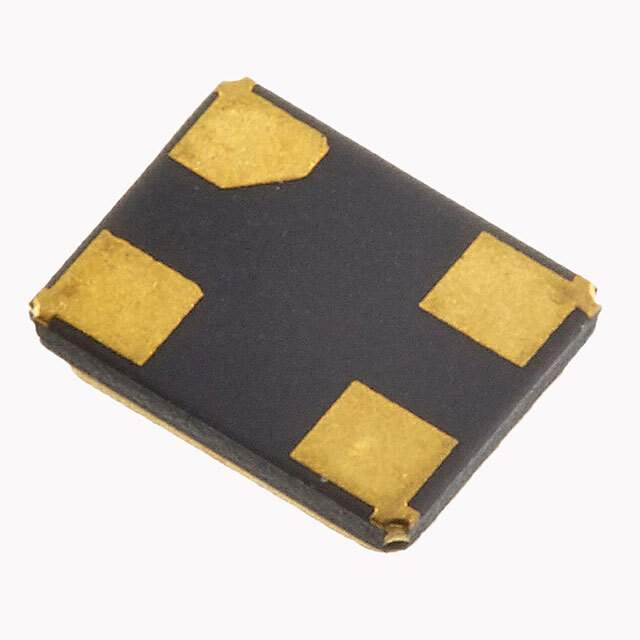

The RH100-27.000-18-F-2020-TR is a crystal oscillator manufactured by Raltron Electronics Corporation. Crystal oscillators like this are used to provide a stable and accurate clock signal for various electronic devices and circuits. The '27.000' indicates the frequency (27 MHz), and the other parameters specify details about the crystal's characteristics and packaging.

Applications

• Microcontrollers
• Communication devices
• Real-time clocks
• Signal generators
• Frequency synthesizers

Features

• Surface mount design
• Stable frequency output
• Low jitter
• Compact size
• Tight frequency tolerance

Benefits

• Provides a reliable and accurate clock signal.
• Simplifies circuit design with integrated oscillator functionality.
• Reduces board space due to its compact size.
• Enhances system performance with low jitter.
• Suitable for high-frequency applications.

Specifications

This crystal oscillator operates at a frequency of 27.000 MHz. Important specifications include the frequency stability (measured in ppm), operating temperature range, load capacitance, and aging. The supply voltage requirement is usually 3.3V or 5V. The packaging (TR likely indicates Tape and Reel) is also essential for automated assembly. Detailed specifications for the oscillator, including frequency tolerance, startup time, and output waveform characteristics, are provided in the manufacturer's datasheet.
