Same model may have multiple batches, images only for reference.

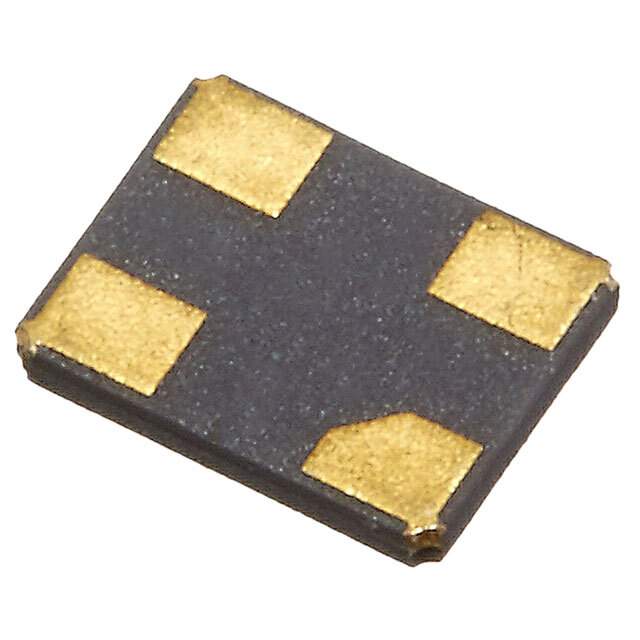

RTX-2016AD333-S-26.000-TR Real Image
Same model may have multiple batches, images only for reference.

RTX-2016AD333-S-26.000-TR

Part No RTX-2016AD333-S-26.000-TR
Manufacturer Raltron Electronics Corporation
Catalog Oscillators
Description XTAL OSC TCXO 26MHZ 3.3V CLP SNW  /  26 MHz TCXO Clipped Sine Wave Oscillator 3.3V 4-SMD, No Lead
Datasheet
RTX-2016AD333-S-26.000-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Raltron Electronics
Series RTX-2016
Package Tape & Reel
Base Resonator Crystal
Type TCXO
Frequency 26 MHz
Output Clipped Sine Wave
Voltage - Supply 3.3V
Frequency Stability ±500ppb
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 2mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.037" (0.95mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 2151-RTX-2016AD333-S-26.000-TRDKR,2151-RTX-2016AD333-S-26.000-TRCT,2151-RTX-2016AD333-S-26.000-TR
Standard Package 1,000
Win Source Part Number 1110716-RTX-2016AD333-S-26.000-TR
Ultra Librarian 3D Model Ultra Librarian RTX-2016AD333-S-26.000-TR CAD Model

Description

The 1110716-RTX-2016AD333-S-26.000-TR is a TCXO oscillator manufactured by Raltron Electronics. It is a part of the RTX-2016 series and is packaged in tape and reel.

  • Frequency: 26 MHz
  • Frequency Stability: ±500ppb
  • Application: electronic devices that require a stable frequency output
