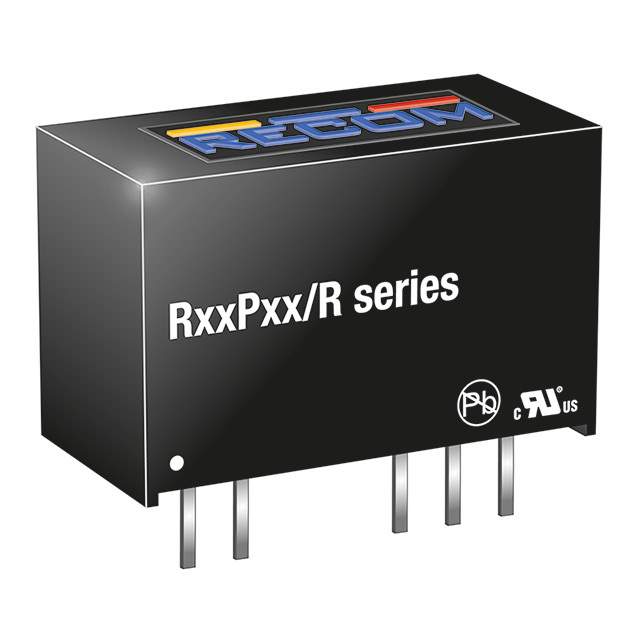

Same model may have multiple batches, images only for reference.

R05P05D/R8

Get a Quote

Part No	R05P05D/R8
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 4.5V - 5.5V Input
Datasheet	R05P05D/R8 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Recom Power
Series	ECONOLINE RxxPxx/R (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	100mA, 100mA
Power (Watts)	1 W
Voltage - Isolation	8 kV
Applications	ITE (Commercial), Medical
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	82%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Dimension	0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm)
Base Product Number	R05P05
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	R05P05DR8,19900015,R05P05D/R8-ND,945-2077-5
Standard Package	25
Win Source Part Number	1223201-R05P05D/R8
Ultra Librarian 3D Model	Ultra Librarian R05P05D/R8 CAD Model

Alternative Products

Description

The ECONOLINE RxxPxx/R (1W) Isolated Module DC DC Converter is a power supply board mount that offers 2 outputs 5V and -5V with a 100mA, 100mA 4.5V-5.5V input.

Manufacturer: Recom Power
Package: Tube
Module: 7-SIP Module
Leads: 5
Applications: ITE (Commercial) and Medical
Standard Package: 25 units
Voltage Isolation: 8kV
Efficiency: 82%
REACH: Unaffected
HTSUS: 8504.40.9580
Other Part Numbers: 19900015, R05P05DR8, R05P05D/R8-ND, and 945-2077-5
