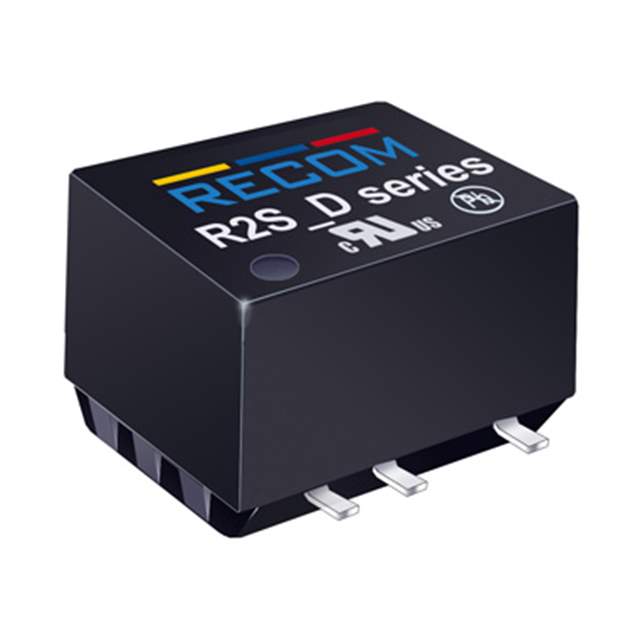

Same model may have multiple batches, images only for reference.

R2D-1212/HP

Name: R2D-1212/HP
Brand: Recom Power
SKU: 1041568
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	R2D-1212/HP
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 83mA, 83mA 10.8V - 13.2V Input
Datasheet	R2D-1212/HP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Recom Power
Series	ECONOLINE R2D (2W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	83mA, 83mA
Power (Watts)	2 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial), Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	83%
Mounting	SMD (SMT)
Package / Case	10-SMD Module, 6 Leads
Dimension	0.60" L x 0.42" W x 0.35" H (15.2mm x 10.7mm x 9.0mm)
Base Product Number	R2D-1212
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	10901252,R2D1212/HP,R2D-1212/HP-ND,945-3314
Standard Package	33
Win Source Part Number	1041568-R2D-1212/HP
Ultra Librarian 3D Model	Ultra Librarian R2D-1212/HP CAD Model

Alternative Products

Description

The Recom Power ECONOLINE R2D (2W) isolated module DC-DC converter is a high-performance power supply solution for a wide range of electronic devices.

Outputs: Two
Inputs: Single
Feature: SCP
Package: Tube
Package Description: 10-SMD module, SMT
Power Output: 2W
Efficiency: 83%
Temperature Range: -40°C to 100°C
ECCN: EAR99
REACH: Not affected
HTSUS Code: 8504.40.9580
