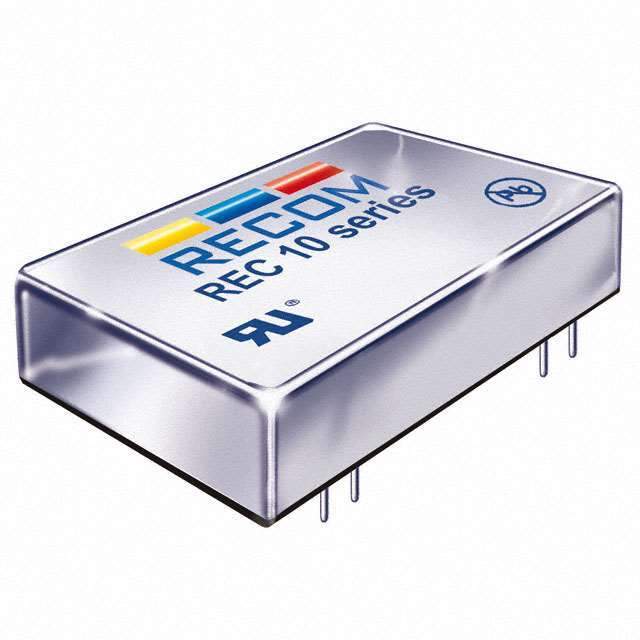

Same model may have multiple batches, images only for reference.

REC10-2405S/H3/M

Get a Quote

Part No	REC10-2405S/H3/M
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 10W / Isolated Module DC DC Converter 1 Output 5V 2A 18V - 36V Input
Datasheet	REC10-2405S/H3/M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Recom Power
Series	ECONOLINE REC10/M (10W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	2A
Power (Watts)	10 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 81°C
Efficiency	87%
Mounting Type	Through Hole
Package / Case	24-DIP Module
Dimension	1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	REC10-2405
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	10015936
Standard Package	10
Win Source Part Number	1228553-REC10-2405S/H3/M
Ultra Librarian 3D Model	Ultra Librarian REC10-2405S/H3/M CAD Model

Alternative Products

Description

The REC10/M (10W) series is a range of isolated module type DC-DC converters that come with features such as remote on/off, OCP, SCP, UVLO.

Package: tube
Application: ITE (Commercial)
Model: REC10-2405S/H3/M
Power Rating: 10 W
Voltage-Isolation: 3 kV
Output: single output
Maximum Output Current: 2A
Input Voltage Range: 18V to 36V
Output Voltage: 5V
Efficiency: 87%
Mounting Type: through-hole
Package/Case: 24-DIP module
Operating Temperature Range: from -40°C to 81°C
