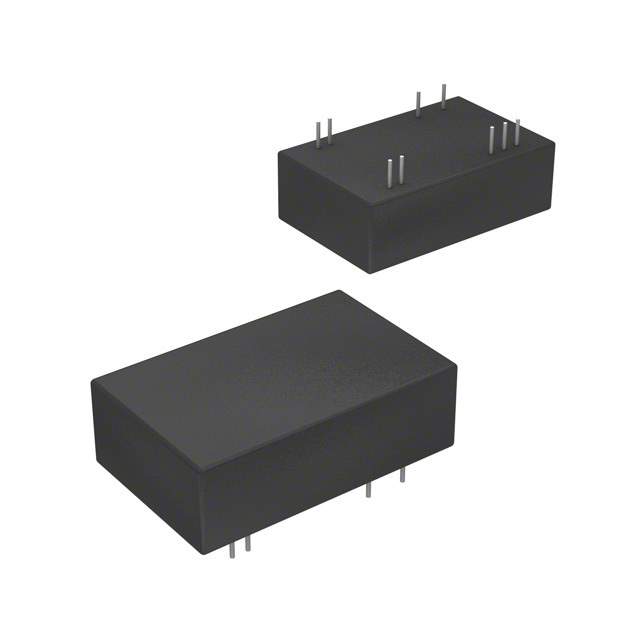

Same model may have multiple batches, images only for reference.

REC3-2415DRW/H4/C

Name: REC3-2415DRW/H4/C
Brand: Recom Power
SKU: 1383311
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	REC3-2415DRW/H4/C
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 18V - 36V Input
Datasheet	REC3-2415DRW/H4/C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Recom Power
Series	ECONOLINE REC3-DRW (3W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Voltage - Output 3	-
Current - Output (Max)	100mA, 100mA
Power (Watts)	3 W
Voltage - Isolation	4 kV
Applications	ITE (Commercial), Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	86%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 9 Leads
Size / Dimension	1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
Base Product Number	REC3-2415
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Standard Package	15 pcs
Win Source Part Number	1383311-REC3-2415DRW/H4/C
Ultra Librarian 3D Model	Ultra Librarian REC3-2415DRW/H4/C CAD Model

Alternative Products

Description

The REC3-2415DRW/H4/C is a 3W isolated DC-DC converter from the ECONOLINE REC3-DRW series by Recom Power. It features two outputs with a voltage of 15V and -15V respectively.

Series: ECONOLINE REC3-DRW
Output Voltage: 15V, -15V
Voltage Isolation: 4kV
Output Current (Max): 100mA
Input Voltage: 18V to 36V
Package: Tube
Standard Package: 15 pieces
Size: 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
Mounting Type: Through Hole
Operating Temperature: -40°C to 85°C
