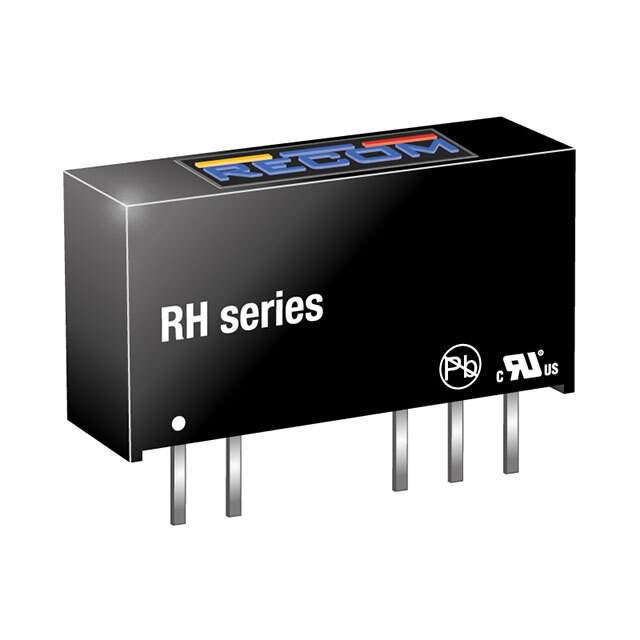

Same model may have multiple batches, images only for reference.

RH-1212D

Name: RH-1212D
Brand: Recom Power
SKU: 1338613
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RH-1212D
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 1W / Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 10.8V - 13.2V Input
Datasheet	RH-1212D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Recom Power
Series	ECONOLINE RH (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	42mA, 42mA
Power (Watts)	1 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial) , Medical
Temperature Range - Operating	-40°C ~ 90°C
Efficiency	84%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm)
Base Product Number	RH-1212
Standard Package	25
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1338613-RH-1212D
Ultra Librarian 3D Model	Ultra Librarian RH-1212D CAD Model

Alternative Products

Description

The ECONOLINE RH (1W) isolated module is a DC-DC converter that is ideal for ITE (Commercial) and medical applications.

Package: 7-SIP Module, 5 Leads
Size: 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm)
Voltage Isolation: 3 kV
Efficiency: 84%
Outputs: Two
Maximum Current Output: 42mA each
Input Voltage Range: 10.8V to 13.2V
Output Voltage 1: 12V
Output Voltage 2: -12V
Mounting Type: Through-Hole
Operating Temperature Range: -40°C to 90°C
Base Product Number: RH-1212
