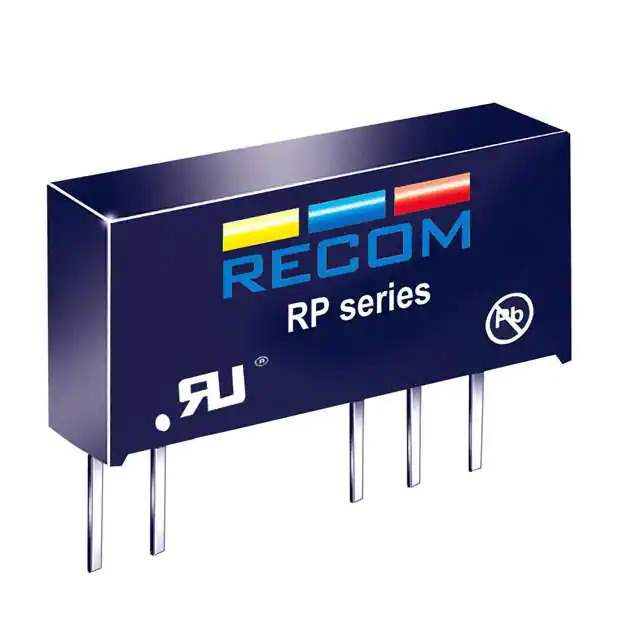

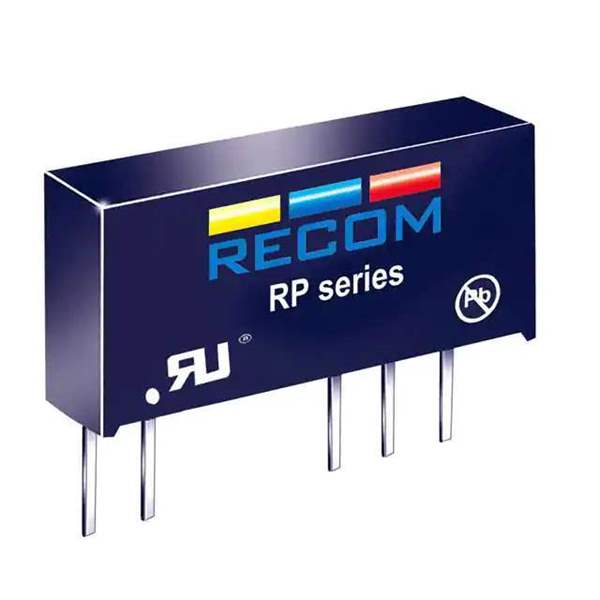

Same model may have multiple batches, images only for reference.

RP-1205D

Name: RP-1205D
Brand: Recom Power
SKU: 660935
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	RP-1205D
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 1W
Datasheet	RP-1205D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Recom Power
Series	ECONOLINE RP (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	100mA, 100mA
Power (Watts)	1 W
Voltage - Isolation	5.2 kV
Applications	ITE (Commercial), Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	76%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
Base Product Number	RP-1205
Standard Package	25 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	660935-RP-1205D
Ultra Librarian 3D Model	Ultra Librarian RP-1205D CAD Model

Alternative Products

Description

The RP-1205D is a 1W isolated module DC-DC converter from the ECONOLINE RP series. It features a voltage isolation of 5.2 kV and has two outputs, with a maximum output current of 100mA for each.

Input Voltage Range: 10.8V to 13.2V
Output Voltages: 5V and -5V
Size: 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
Mounting: Through-hole mounting
Applications: ITE (Commercial) and Medical devices
Efficiency: 76%
Standard Package: 25 pcs
Protection: SCP (Short Circuit Protection)
Product Status: Active
Compliance: California Prop 65
