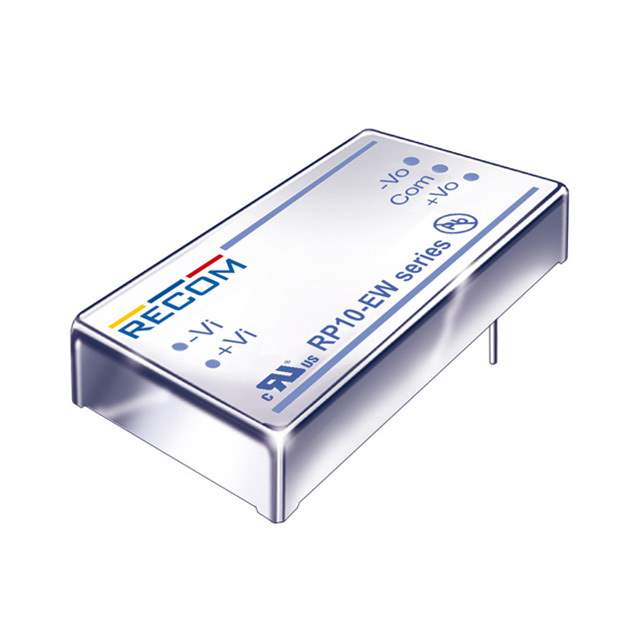

Same model may have multiple batches, images only for reference.

RP10-2415DEW

Name: RP10-2415DEW
Brand: Recom Power
SKU: 1140567
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	RP10-2415DEW
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 10W / Isolated Module DC DC Converter 2 Output 15V -15V 333mA, 333mA 9V - 36V Input
Datasheet	RP10-2415DEW Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Recom Power
Series	POWERLINE RP10-EW (10W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	333mA, 333mA
Power (Watts)	10 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	OCP, OVP, SCP
Temperature Range - Operating	-25°C ~ 85°C
Efficiency	80%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number	RP10-2415
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	945-1249,RP102415DEW,30000338
Standard Package	9
Win Source Part Number	1140567-RP10-2415DEW
Ultra Librarian 3D Model	Ultra Librarian RP10-2415DEW CAD Model

Alternative Products

Description

The POWERLINE RP10-EW (10W) is an isolated module power supply designed for ITE (Commercial) applications.

Protection: OCP, OVP, and SCP protection
Voltage Isolation: 1.6 kV
Outputs: Two outputs
Maximum Output Current: 333mA each
Efficiency: 80%
Voltage Input Range: 9V to 36V
Output Voltage: 15V and -15V
Mounting Type: Through hole
Package: 6-DIP module
Operating Temperature: -25°C to 85°C
Standard Package: 9 units
Cross-Reference: Part number 30000338
