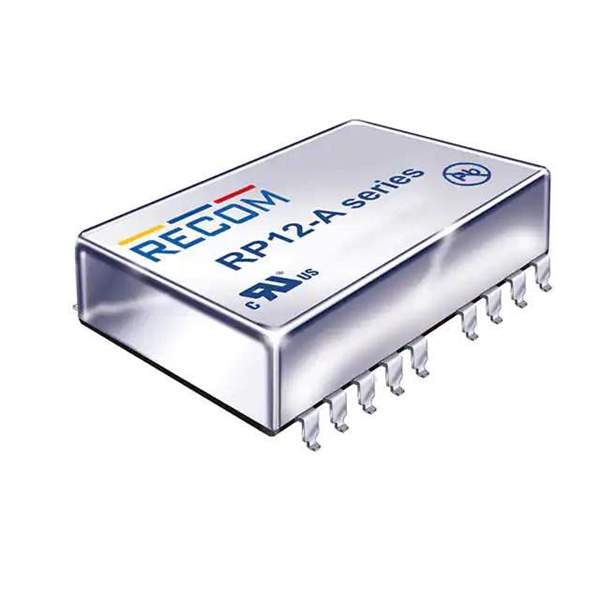

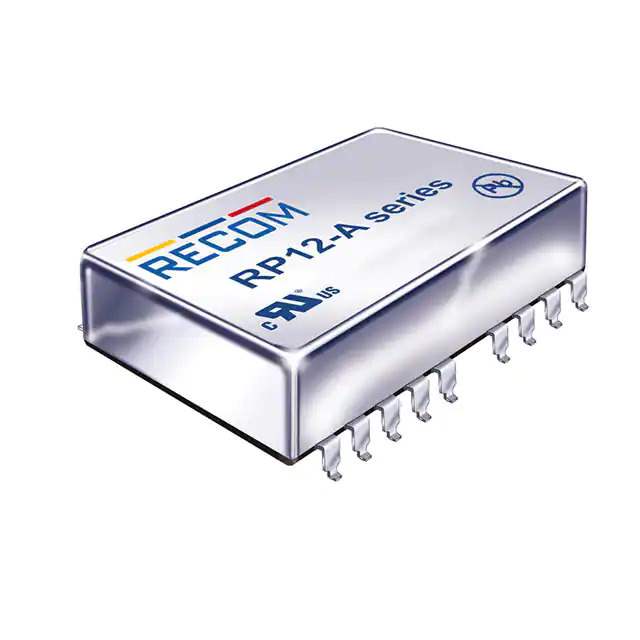

RP12-2415DA Real Image
Same model may have multiple batches, images only for reference.

RP12-2415DA

Part No RP12-2415DA
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 12W
Datasheet
RP12-2415DA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Recom Power
Series POWERLINE RP12-A (12W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 400mA, 400mA
Power (Watts) 12 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 88%
Mounting Type Through Hole
Package / Case 24-DIP Module, 9 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Control Features Enable, Active High
Base Product Number RP12-2415
Standard Package 7 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 660938-RP12-2415DA
Ultra Librarian 3D Model Ultra Librarian RP12-2415DA CAD Model

Description

The 660938-RP12-2415DA is an active isolated module in the POWERLINE RP12-A series manufactured by Recom Power.

  • Series: POWERLINE RP12-A
  • Application: Board Mount DC-DC Conversion in Power Supply Applications
  • Package: Tube
  • Size: 1.25" L x 0.80" W x 0.40" H
  • Power: 12W
  • Outputs: Dual
  • Output Voltages: 15V and -15V
  • Efficiency: 88%
  • Maximum Output Current: 400mA for each output
  • Input Voltage Range: 18V to 36V
  • Voltage Isolation: 1.6kV
  • Application: ITE (Commercial)
  • Mounting: Through Hole
  • Package: 24-DIP with 9 Leads
  • Operating Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • REACH Regulations: Not Affected
  • California Prop 65: Compliant
