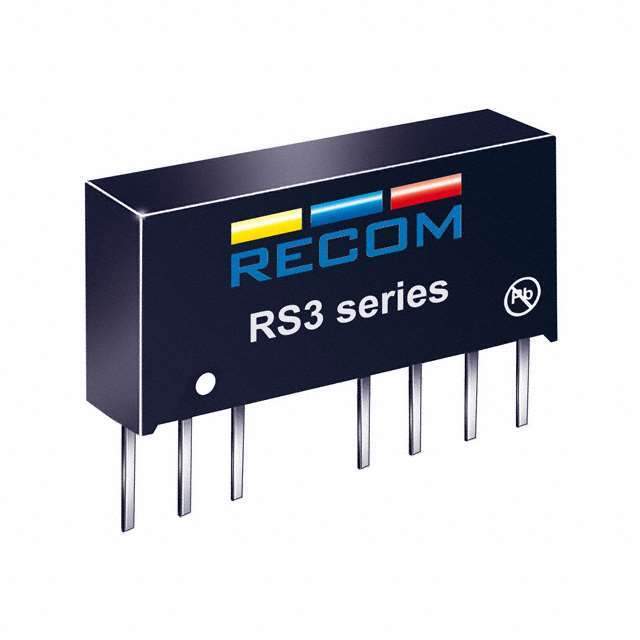

Same model may have multiple batches, images only for reference.

RS3-0505S

Name: RS3-0505S
Brand: Recom Power
SKU: 1335314
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RS3-0505S
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 3W / Isolated Module DC DC Converter 1 Output 5V 600mA 4.5V - 9V Input
Datasheet	RS3-0505S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Recom Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	5V
Current - Output (Max)	600mA
Power (Watts)	3 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 71°C
Efficiency	79%
Mounting	Through Hole
Case / Package	8-SIP Module, 7 Leads
Size / Dimension	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Control Features	Enable, Active Low
Base Product Number	RS3-0505
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	945-1319,10004005,RS30505S
Standard Package	22
Win Source Part Number	1335314-RS3-0505S
Ultra Librarian 3D Model	Ultra Librarian RS3-0505S CAD Model

Alternative Products

Description

The Recom Power 1335314-RS3-0505S is a DC-DC converter module that is isolated.

Power Rating: 3 watts
Voltage Isolation: 1 kV
Efficiency: 79 percent
Current Output: 600mA
Input Voltage Range: 4.5V to 9V
Mounting: Through-hole
Package: 8-SIP module with 7 leads
Applications: ITE (Commercial)
Standard Package: 22
Control Features: Enable and active low, and SCP
Compliance: ROHS3 compliant
Temperature Range: -40°C to 71°C
