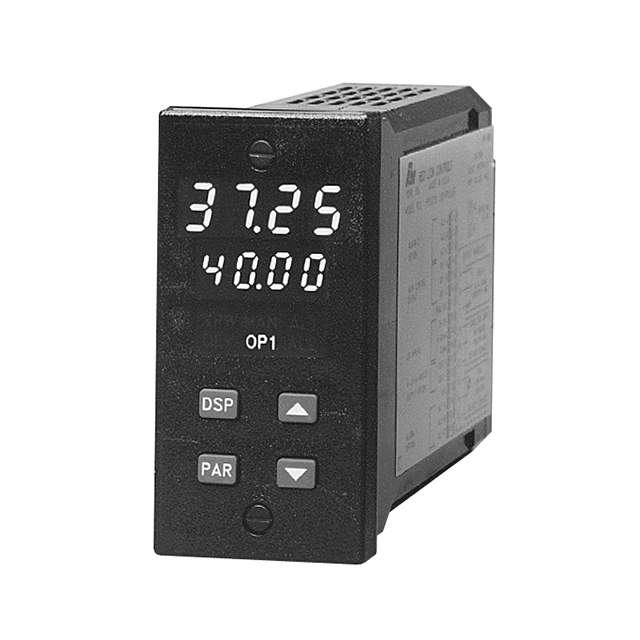

TCU10204 Real Image
Same model may have multiple batches, images only for reference.

TCU10204

Part No TCU10204
Manufacturer Red Lion Controls
Catalog Controllers - Process, Temperature
Description CONTROL TEMP ANALOG OUT 115/230V  /  Temperature Controller (RTD, Type B, E, J, K, N, R, S, T) 115/230VAC Panel Mount
Datasheet
TCU10204 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Controllers - Process, Temperature
Mfr Red Lion Controls
Series TCU
Package Box
Product Status Obsolete
Type Temperature Controller (RTD, Type B, E, J, K, N, R, S, T)
Input Range -200°C ~ 1820°C, -5 ~ 56mV
Output Type Analog, Option Cards Available
Control Method On/Off, Proportional (PID)
Communications RS-485
Number Of Characters Per Row 4, 4
Display Type LED - Dual Color Characters
Display Characters - Height 0.401" (10.20mm), 0.299" (7.60mm)
Voltage - Supply 115/230VAC
Panel Cutout Dimensions Rectangular - 92.00mm x 45.00mm
Mounting Type Panel Mount
Termination Style Screw Terminal
Ingress Protection IP65 - Dust Tight, Water Resistant
Features Heater Fault Detection
Temperature Range - Operating 0°C ~ 50°C
Weight 1.3 lbs (589.7 g)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Standard Package 1
Win Source Part Number 1137622-TCU10204
Ultra Librarian 3D Model Ultra Librarian TCU10204 CAD Model

Description

The Red Lion Controls TCU10204 is a temperature controller from Red Lion Controls.

  • Type: RTD, Type B, E, J, K, N, R, S, T
  • Termination Style: screw terminal
  • Heater Fault Detection: yes
  • Packaging: box
  • Ingress Protection: IP65 - dust tight, water-resistant
  • Output Type: analog, option cards available
  • Mounting: panel
  • Panel Cutout Dimensions: rectangular - 92.00mm x 45.00mm
  • Display Type: LED - dual-color characters
  • Input Range: -200°C ~ 1820°C, -5 ~ 56mV
  • Control Method: on/off, proportional (PID)
  • Communications: RS-485
  • Display Characters per Row: 4, 4
  • Display Characters - Height: 0.401" (10.20mm), 0.299" (7.60mm)
  • Voltage Supply: 115/230VAC
  • Operating Temperature Range: 0°C ~ 50°C
