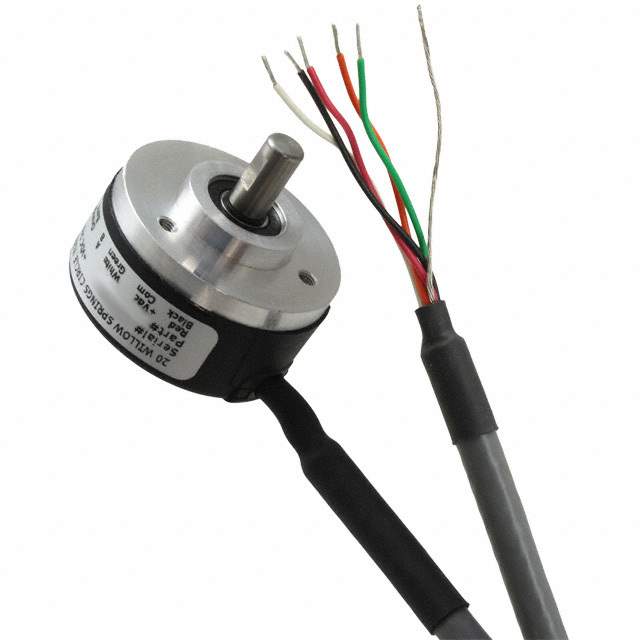

ZSD1000A Real Image
Same model may have multiple batches, images only for reference.

ZSD1000A

Part No ZSD1000A
Manufacturer Red Lion Controls
Catalog Encoders
Description ROTARY ENCODER MECH 1000PPR  /
Datasheet
ZSD1000A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Encoders - Industrial
Mfr Red Lion Controls
Series ZSD
Package Box
Encoder Type Mechanical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 1000
Voltage - Supply 4.75V ~ 28V
Actuator Type 1/4" Dia Flatted End
Detent No
Mounting Type Chassis Mount, Motors
Termination Style Cable
Base Product Number ZSD1000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Other Names RLC184,ZSD1000A-ND
Standard Package 1
Win Source Part Number 1209703-ZSD1000A
Ultra Librarian 3D Model Ultra Librarian ZSD1000A CAD Model

Description

The ZSD1000A encoder from Red Lion Controls is a mechanical component that comes in a box package and has a cable termination style.

  • Mounting Type: chassis mount or motor mount
  • Actuator Type: 1/4 inch dia flatted end
  • Output Type: quadrature with index (incremental)
  • Pulses per Revolution: 1000
  • Voltage Supply: 4.75V to 28V
  • ECCN: EAR99
  • Application: industrial encoders
