The 89H32NT24BG2ZCHLGI is a high-performance PCIe Gen2 switch from Renesas Electronics America, designed for various interface and connectivity applications. This switch provides efficient data transfer and aggregation, making it suitable for demanding environments.

Applications

• Server platforms
• Storage systems
• Networking equipment
• Embedded systems requiring high-speed data transfer
• Industrial automation

Features

• 32 lanes, allowing for versatile connectivity options
• PCIe Gen2 compliant, supporting high-speed data transfer rates
• Non-transparent bridging (NTB) capability for system expansion
• Advanced error reporting and handling mechanisms
• Low power consumption
• Integrated clock generation

Benefits

• Increased system performance due to high-speed data transfer capabilities.
• Flexibility in system design with multiple lane configurations.
• Improved system reliability through advanced error handling.
• Reduced power consumption leading to lower operating costs.
• Simplified integration due to integrated clock generation.

Additional Details

The Renesas 89H32NT24BG2ZCHLGI switch supports PCIe Gen2 speeds, enabling it to handle large amounts of data efficiently. The NTB functionality allows for connecting multiple systems together, creating larger and more complex networks. It is designed with a focus on reliability, featuring comprehensive error detection and correction capabilities. The integrated clock generation simplifies board layout and reduces component count.

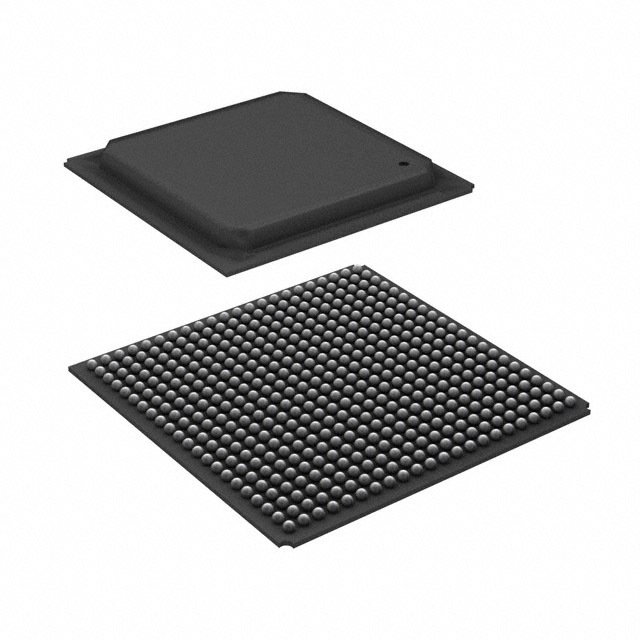

Package: Typically available in a BGA (Ball Grid Array) package.

It's used for applications needing high bandwidth, low latency, and robust connectivity, providing a solid backbone for data-intensive applications.
