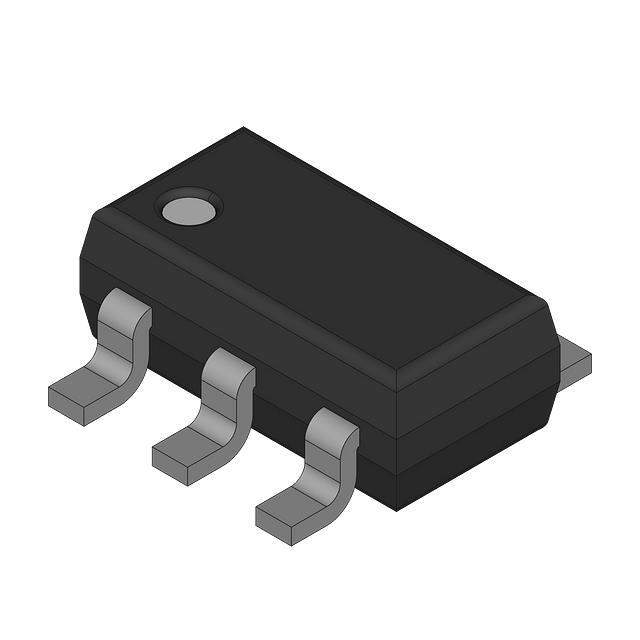

NNCD5.6MG-T1-A Real Image
Same model may have multiple batches, images only for reference.

NNCD5.6MG-T1-A

Part No NNCD5.6MG-T1-A
Manufacturer Renesas Electronics America
Catalog TVS - Diodes
Description NNCD5.6MG-T1-A - LOW CAPACITANCE / Clamp Ipp Tvs Diode Surface Mount 5-Mini Mold
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Renesas
Package Bulk
Product Status Obsolete
Type Steering (Rail to Rail)
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 2.5V (Max)
Voltage - Breakdown (Min) 5.3V
Power - Peak Pulse 2W
Power Line Protection No
Applications Telecom, USB
Capacitance @ Frequency 26pF @ 1MHz
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Package / Case SC-74A, SOT-753
Supplier Device Package 5-Mini Mold
RoHS Status RoHS non-compliant
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Other Names 2156-NNCD5.6MG-T1-A
Standard Package 1
Win Source Part Number 1082586-NNCD5.6MG-T1-A
Ultra Librarian 3D Model Ultra Librarian NNCD5.6MG-T1-A CAD Model

Description

The NNCD5.6MG-T1-A is a steering (rail to rail) diode from Renesas.

  • Function: Circuit protection
  • Category: TVS - diodes
  • Part Number: 1082586-NNCD5.6MG-T1-A
  • Package: Bulk
  • Voltage Breakdown: 5.3V
  • Reverse Standoff Voltage: 2.5V (max)
  • Power Peak Pulse: 2W
  • Capacitance: 26pF @ 1MHz
  • Temperature Range: 150°C (TJ)
  • Product Status: Obsolete
  • RoHS Compliant: No
