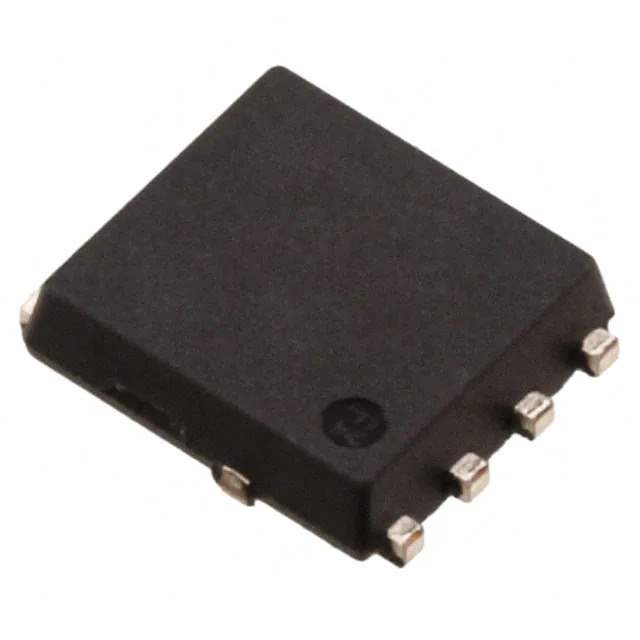

Same model may have multiple batches, images only for reference.

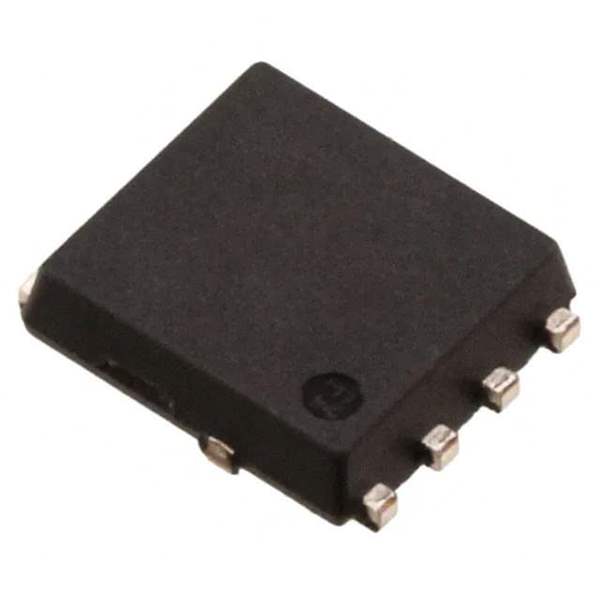

NP75N04YUK-E1-AY Real Image
Same model may have multiple batches, images only for reference.

NP75N04YUK-E1-AY

Part No NP75N04YUK-E1-AY
Manufacturer Renesas Electronics America
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 75A 8HSON
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Renesas Electronics America
Package Tape & Reel
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 75A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 3.3mOhm @ 38A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 87 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 5100 pF @ 25 V
Power Dissipation (Max) 1W (Ta), 138W (Tc)
Temperature Range - Operating 175°C
Mounting Type Surface Mount
Supplier Device Package 8-HSON (5x5.4)
Package / Case 8-PowerLDFN
Base Product Number NP75N04
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 832720-NP75N04YUK-E1-AY
Ultra Librarian 3D Model Ultra Librarian NP75N04YUK-E1-AY CAD Model

Description

The NP75N04YUK-E1-AY, an N-Channel MOSFET transistor from Renesas Electronics America, is designed for high current applications.

  • Drain-to-Source Voltage: 40V
  • Continuous Drain Current: 75A
  • Maximum On-Resistance: 3.3mOhm
  • Gate Charge: 87nC
  • Operating Temperature Range: -55°C to 175°C
  • Series: NP75N04
