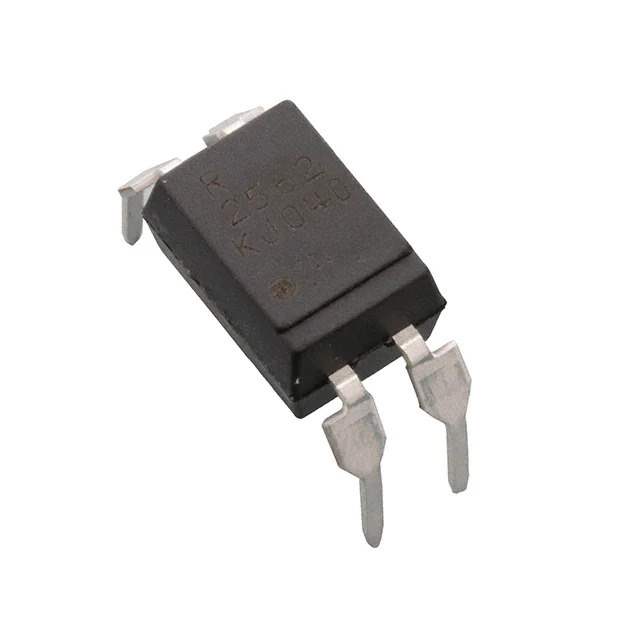

PS2561AL1-1-A

Name: PS2561AL1-1-A
Brand: Renesas Electronics America
SKU: 656840
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PS2561AL1-1-A
Manufacturer	Renesas Electronics America
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	OPTOISOLATOR 5KV TRANS 4DIP / Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
Datasheet	PS2561AL1-1-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr	Renesas Electronics America
Series	NEPOC
Package	Tube
Product Status	Not For New Designs
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	400% @ 5mA
Rise / Fall Time (Typ)	3µs, 5µs
Input Type	DC
Output Type	Transistor
Voltage - Output (Max)	70V
Current - Output / Channel	30mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	30 mA
Vce Saturation (Max)	300mV
Temperature Range - Operating	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.400", 10.16mm)
Supplier Device Package	4-DIP
Base Product Number	PS2561
Standard Package	100 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8541.49.8000
Win Source Part Number	656840-PS2561AL1-1-A
Ultra Librarian 3D Model	Ultra Librarian PS2561AL1-1-A CAD Model

Alternative Products

Description

The PS2561AL1-1-A is a photovoltaic output optoisolator from Renesas Electronics America.

Category: Isolators - Optoisolators
Series: NEPOC
Package: Tube
Standard Package: 100 pieces
Output Type: Transistor
Input Type: DC
Maximum Forward Current: 30mA
Forward Voltage: 1.2V
Rise/Fall Time: 3μs/5μs
Current Transfer Ratio: 50% @ 5mA
Voltage Isolation: 5000Vrms
Maximum Output Voltage: 70V
