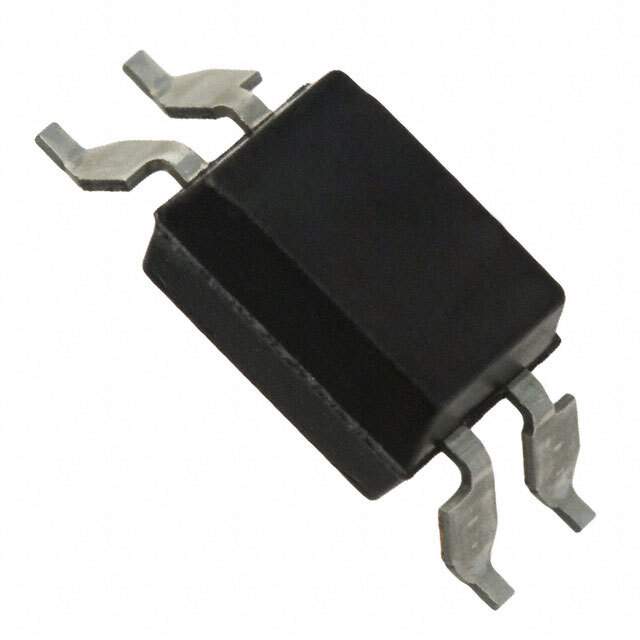

PS2561DL2-1Y-A

Name: PS2561DL2-1Y-A
Brand: Renesas Electronics America
SKU: 1002895
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PS2561DL2-1Y-A
Manufacturer	Renesas Electronics America
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	OPTOISOLATOR 5KV TRANS 4SMD / Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
Datasheet	PS2561DL2-1Y-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr	Renesas Electronics America Inc
Series	NEPOC
Package	Tube
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	400% @ 5mA
Rise / Fall Time (Typ)	3µs, 5µs
Input Type	DC
Output Type	Transistor
Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	40 mA
Vce Saturation (Max)	300mV
Temperature Range - Operating	-55°C ~ 110°C
Mounting	SMD (SMT)
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
Base Product Number	PS2561
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.49.8000
Other Names	-1161-PS2561DL2-1Y-A,559-1140
Standard Package	100
Win Source Part Number	1002895-PS2561DL2-1Y-A
Ultra Librarian 3D Model	Ultra Librarian PS2561DL2-1Y-A CAD Model

Alternative Products

Description

The Renesas Electronics America 1002895-PS2561DL2-1Y-A is an optoisolator with a transistor photovoltaic output.

Package: Tube (100 quantities)
Mounting: Surface Mountable
Current Transfer Ratio: 50% @ 5mA (min), 400% @ 5mA (max)
Voltage Isolation: 5000Vrms
Operating Temperature: -55°C to 110°C
ECCN: EAR99
Popularity: 69%
REACH: Unaffected
HTSUS Code: 8541.49.8000
Alternative Names: -1161-PS2561DL2-1Y-A, 559-1140
