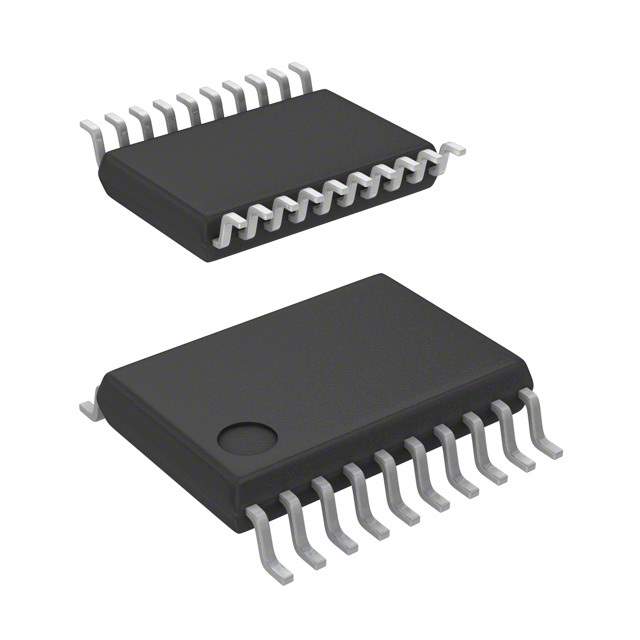

R5F21294KSP#W4 Real Image
Same model may have multiple batches, images only for reference.

R5F21294KSP#W4

Part No R5F21294KSP#W4
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 16KB FLASH 20LSSOP / MCU 16-bit R8C CISC 16KB Flash 3.5V/5V Automotive 20-Pin LSSOP T/R
Datasheet
R5F21294KSP#W4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Renesas Electronics America
Series R8C/2x/29
Packaging Reel package
Core Processor R8C
Core Size 16-Bit
Speed 16MHz
Connectivity I2C, LIN, SIO, SSU, UART/USART
Peripherals LED, POR, Voltage Detect, WDT
Number of I/O 13
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
RAM Size 1K x 8
Supply Voltage 2.7 V ~ 5.5 V
Data Converters A/D 4x10b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 125°C (TA)
Package 20-LSSOP (0.173", 4.40mm Width)
Manufacturer Package 20-LSSOP
Win Source Part Number 792941-R5F21294KSP#W4
Popularity Medium
Supply and Demand Status Limited
Family Name R5F21294
Introduction Date February 23, 2006
ECCN EAR99
Country of Origin China , Japan
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian R5F21294KSP#W4 CAD Model

Description

The R8C/2x/29 series from Renesas Electronics America is a 16-bit core processor with a speed of 16MHz.

  • Package: 20-LSSOP (0.173", 4.40mm Width)
  • I/Os: 13
  • Program Memory Size: 16KB (16K x 8)
  • Program Memory Type: FLASH
  • RAM Size: 1K x 8
  • A/D: 4x10b data converters
  • Oscillator Type: Internal
  • Supply Voltage: 2.7 V to 5.5 V
  • Peripherals: LED, POR, Voltage Detect, WDT
  • Connectivity: I2C, LIN, SIO, SSU, UART/USART
  • Family Name: R5F21294
  • Manufacturer Package: 20-LSSOP
