Same model may have multiple batches, images only for reference.

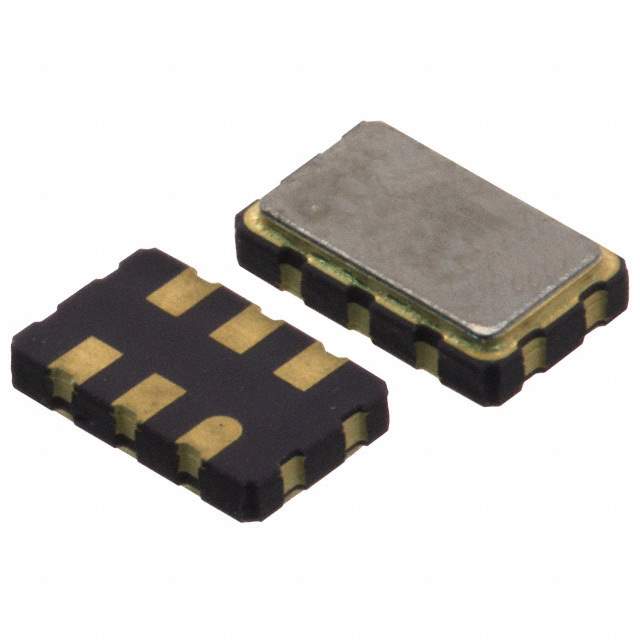

XLL526125.000000I Real Image
Same model may have multiple batches, images only for reference.

XLL526125.000000I

Part No XLL526125.000000I
Manufacturer Renesas Electronics America
Catalog Oscillators
Description XTAL OSC XO 125.0000MHZ LVDS SMD / 125 MHz XO (Standard) LVDS Oscillator 2.5V Enable/Disable 6-SMD, No Lead
Datasheet
XLL526125.000000I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Renesas Electronics America Inc
Series XPRESSO™ FXO-LC52
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 125 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 2.5V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 34mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.203" L x 0.132" W (5.15mm x 3.35mm)
Height - Seated (Max) 0.055" (1.40mm)
Base Product Number XLL526
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1339810-XLL526125.000000I
Ultra Librarian 3D Model Ultra Librarian XLL526125.000000I CAD Model

Description

The XLL526125.000000I crystal oscillator is a part of the XPRESSO™ FXO-LC52 series and operates @ a frequency of 125 MHz.

  • Oscillator Type: Standard XO
  • Package: Tape and reel
  • Size: 0.203" L x 0.132" W (5.15mm x 3.35mm)
  • Height: 0.055" (1.40mm)
  • Output: LVDS
  • Frequency Stability: ±25ppm
  • Current Supply: 34mA
  • Voltage Supply: 2.5V
  • Mounting Type: Surface mount
  • Package: 6-SMD, No Lead
