Same model may have multiple batches, images only for reference.

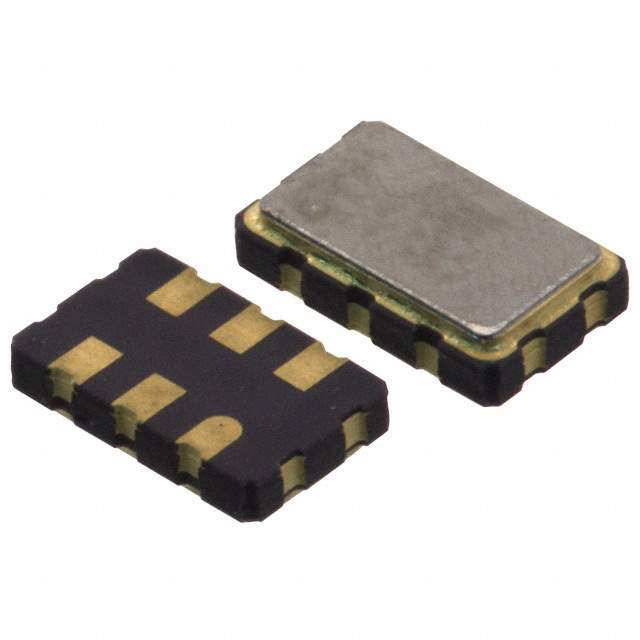

XLL526156.250000I Real Image
Same model may have multiple batches, images only for reference.

XLL526156.250000I

Part No XLL526156.250000I
Manufacturer Renesas Electronics America
Catalog Oscillators
Description XTAL OSC XO 156.2500MHZ LVDS SMD / 156.25 MHz XO (Standard) LVDS Oscillator 2.5V Enable/Disable 6-SMD, No Lead
Datasheet
XLL526156.250000I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Renesas Electronics America Inc
Series XPRESSO™ FXO-LC52
Package Strip
Base Resonator Crystal
Type XO (Standard)
Frequency 156.25 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 2.5V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 34mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.203" L x 0.132" W (5.15mm x 3.35mm)
Height - Seated (Max) 0.055" (1.40mm)
Base Product Number XLL526
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1337207-XLL526156.250000I
Ultra Librarian 3D Model Ultra Librarian XLL526156.250000I CAD Model

Description

The Renesas Electronics America Inc XPRESSO™ FXO-LC52 is a surface mount crystal oscillator with a frequency of 156.25 MHz and a frequency stability of ±25ppm.

  • Type: XO (Standard)
  • Frequency: 156.25 MHz
  • Function: Enable/Disable
  • Output: LVDS
  • Voltage - Supply: 2.5V
  • Frequency Stability: ±25ppm
  • Current - Supply (Max): 34mA
  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Surface Mount
  • Package / Case: 6-SMD, No Lead
  • Size / Dimension: 0.203" L x 0.132" W (5.15mm x 3.35mm)
  • Height - Seated (Max): 0.055" (1.40mm)
