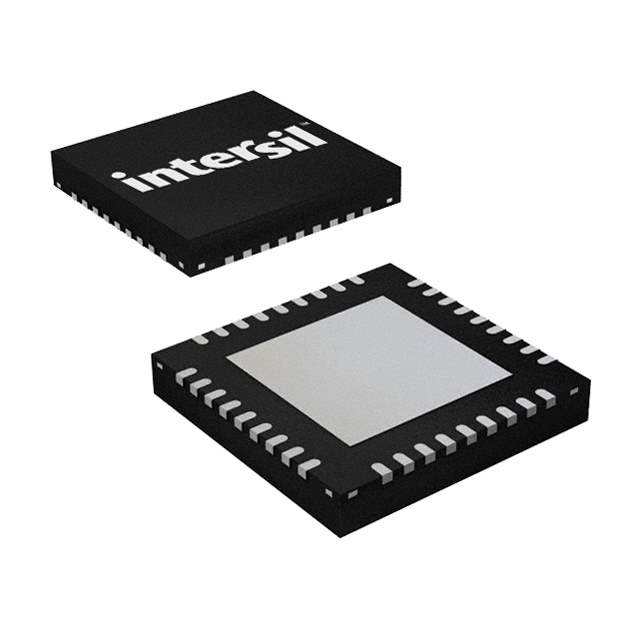

ZL6100ALBF

Name: ZL6100ALBF
Brand: Renesas Electronics America
SKU: 1014508
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	ZL6100ALBF
Manufacturer	Renesas Electronics America
Catalog	PMIC - Voltage Regulators - DC DC Switching Controllers
Description	IC REG CTRLR BUCK PMBUS 36QFN / Buck Regulator Positive Output Step-Down I²C, PMBus, SMBus DC-DC Controller IC 36-QFN (6x6)
Datasheet	ZL6100ALBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>PMIC - Voltage Regulators - DC DC Switching Controllers
Mfr	Renesas Electronics America Inc
Series	Digital-DC™
Package	Tube
Product Status	Obsolete
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Supply Voltage - Operating	3V ~ 5.5V
Frequency - Switching	200kHz ~ 1.4MHz
Duty Cycle (Max)	95%
Synchronous Rectifier	Yes
Clock Sync	Yes
Serial Interfaces	I2C, PMBus, SMBus
Control Features	Current Limit, Enable, Power Good, Soft Start, Tracking
Temperature Range - Operating	-40°C ~ 85°C (TA)
Mounting	SMD (SMT)
Package / Case	36-VFQFN Exposed Pad
Supplier Device Package	36-QFN (6x6)
Base Product Number	ZL6100
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Standard Package	50
Win Source Part Number	1014508-ZL6100ALBF
Ultra Librarian 3D Model	Ultra Librarian ZL6100ALBF CAD Model

Alternative Products

Description

The Renesas Electronics America ZL6100ALBF is an integrated circuit that serves as a voltage regulator for DC DC switching controllers.

Function: Step-Down
Topology: Buck
Switching Frequency: 200 kHz to 1.4 MHz
Features: Synchronous Rectification
Duty Cycle: 95%
Clock Sync: Yes
Package/Case: 36-VFQFN Exposed Pad
Standard Package: 50
Temperature Range: -40°C to 85°C
Supply Voltage: 3V to 5.5V
Status: Obsolete
