Same model may have multiple batches, images only for reference.

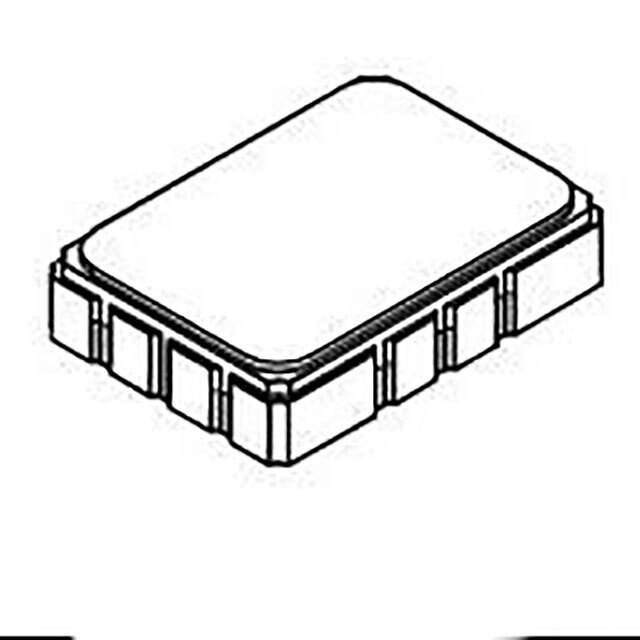

SF2157A Real Image
Same model may have multiple batches, images only for reference.

SF2157A

Part No SF2157A
Manufacturer RF Monolithics, Inc
Catalog SAW Filters
Datasheet
SF2157A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>SAW Filters
Mfr RFMi
Package Tape & Reel (TR),Tape & Reel (TR),Bag
Frequency - Center 156MHz
Bandwidth 22MHz, 24MHz, 27MHz
Insertion Loss 10dB
Ratings AEC-Q200
Applications IF
Mounting SMD (SMT)
Package / Case 12-SMD, No Lead
Height (Max) 0.079" (2.00mm)
Dimension 0.524" L x 0.256" W (13.31mm x 6.50mm)
Base Product Number SF2157
Other Names 2410-SF2157ATR2,2410-SF2157ATR,2410-SF2157A
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1275850-SF2157A
Ultra Librarian 3D Model Ultra Librarian SF2157A CAD Model

Description

The RFMi SF2157A is a SAW filter with ratings of AEC-Q200 that has a bandwidth of 22MHz, 24MHz, and 27MHz.

  • Frequency Center: 156MHz
  • Standard Package: 1,000
  • Ideal for: IF applications
  • Insertion Loss: 10dB
  • Mountable with: SMD (SMT)
  • Dimension: 0.524" L x 0.256" W (13.31mm x 6.50mm)
  • ECCN: EAR99
  • MSL level: 1 (Unlimited)
