Same model may have multiple batches, images only for reference.

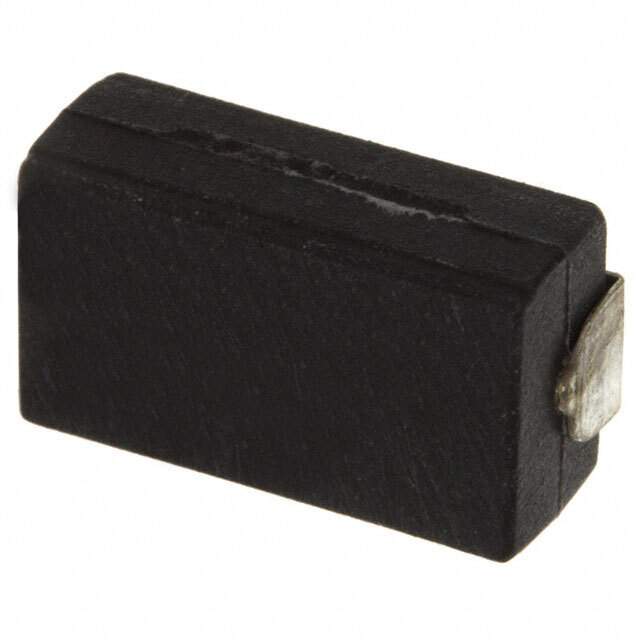

S4-0R2J1 Real Image
Same model may have multiple batches, images only for reference.

S4-0R2J1

Part No S4-0R2J1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES 0.2 OHM 5% 2W 4525  /  200 mOhms ±5% 2W Chip Resistor 4525 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S4-0R2J1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel (TR)
Resistance 200 mOhms
Tolerance ±5%
Power (Watts) 2W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Range - Operating -55°C ~ 275°C
Package / Case 4525 J-Lead
Dimension 0.449" L x 0.252" W (11.40mm x 6.40mm)
Height - Seated (Max) 0.197" (5.00mm)
Number of Terminations 2
Other Names S-4 0.200 OHM 5%,S-4-0.200JTR,S-4-0.200JTR
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237181-S4-0R2J1
Ultra Librarian 3D Model Ultra Librarian S4-0R2J1 CAD Model

Description

The Riedon S-4-0.200JTR is a wirewound chip resistor that is ideal for use in a wide range of electronic applications.

  • MSL Level: 1 (unlimited)
  • REACH Status: Affected
  • Manufacturer: Riedon
