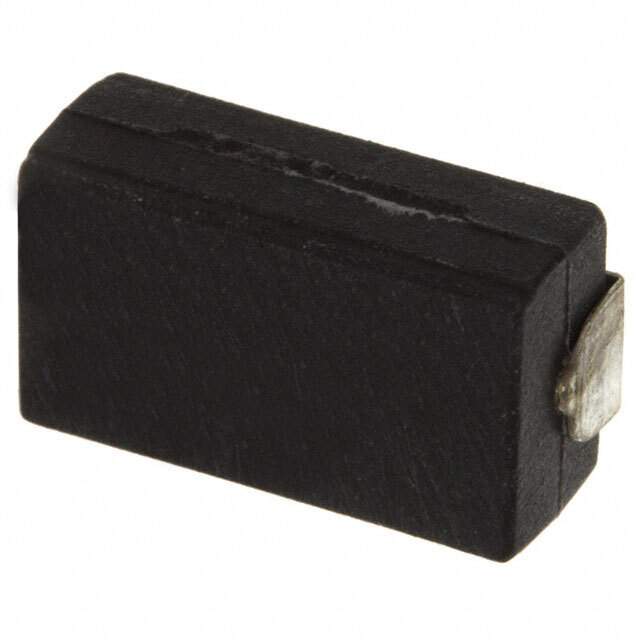

S4-15KF1 Real Image
Same model may have multiple batches, images only for reference.

S4-15KF1

Part No S4-15KF1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES SMD 15K OHM 1% 2W 4525  /  15 kOhms ±1% 2W Chip Resistor 4525 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S4-15KF1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel
Resistance 15 kOhms
Tolerance ±1%
Power (Watts) 2W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case 4525 J-Lead
Dimension 0.449" L x 0.252" W (11.40mm x 6.40mm)
Height - Seated (Max) 0.197" (5.00mm)
Number of Terminations 2
Other Names S-4-15000FCT,S-4-15000FDKR,696-1245-1,S-4-15000FCT,696-1245-2,S-4-15000FTR,S-4-15000FDKR,S-4-15000FTR,S415000OHM1,696-1245-6
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237213-S4-15KF1
Ultra Librarian 3D Model Ultra Librarian S4-15KF1 CAD Model

Description

The Riedon S-4-15000FCT is a wirewound chip resistor with a resistance of 15 kOhms and a power rating of 2W.

  • Manufacturer: Riedon
  • Resistance: 15 kOhms
  • Power Rating: 2W
  • Package: 4525 J-Lead
  • Packaging: Tape and Reel
  • Applications: High power, current sense, flame proof, moisture resistant, pulse withstanding, and safety
  • Maximum Seated Height: 0.197 inches
  • Tolerance: ±1%
  • Temperature Range: -55°C to 275°C
  • Temperature Coefficient: ±20ppm/°C
