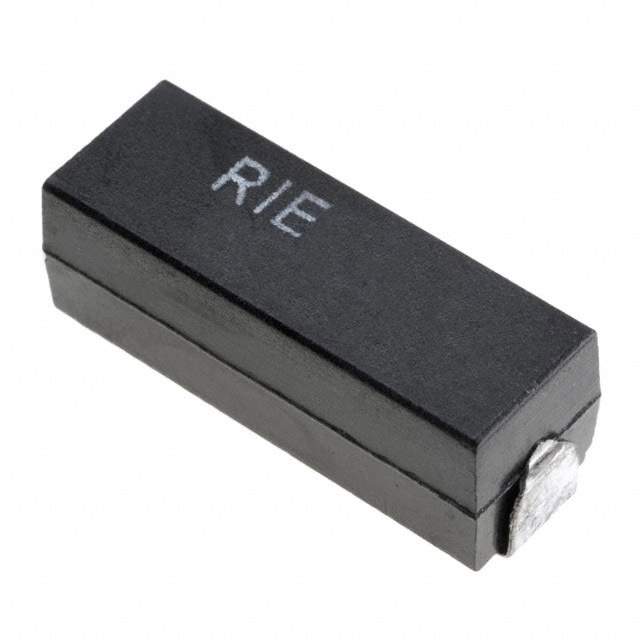

S5-100RF2 Real Image
Same model may have multiple batches, images only for reference.

S5-100RF2

Part No S5-100RF2
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES SMD 100 OHM 1% 4W 8230  /  100 Ohms ±1% 4W Chip Resistor 8230 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S5-100RF2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel
Resistance 100 Ohms
Tolerance ±1%
Power (Watts) 4W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case 8230 J-Lead
Dimension 0.819" L x 0.296" W (20.80mm x 7.50mm)
Height - Seated (Max) 0.319" (8.10mm)
Number of Terminations 2
Other Names S-5-100FTR,S-5-100FTR,S-5-100FDKR,S-5-100FCT,696-1257-1,S-5-100FDKR,696-1257-2,S5100OHM1,S-5-100FCT,696-1257-6
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237214-S5-100RF2
Ultra Librarian 3D Model Ultra Librarian S5-100RF2 CAD Model

Description

The Riedon S-5-100FTR is a wirewound chip resistor with a resistance of 100 Ohms and a power rating of 4W.

  • Manufacturer: Riedon
  • Resistance: 100 Ohms
  • Power Rating: 4W
  • Package: 8230 J-Lead
  • Packaging: Tape and Reel
  • Applications: High power, current sense, flame proof, moisture resistant, pulse withstanding, and safety
  • Maximum Seated Height: 0.319 inches
  • Tolerance: ±1%
  • Temperature Range: -55°C to 275°C
  • Temperature Coefficient: ±20ppm/°C
