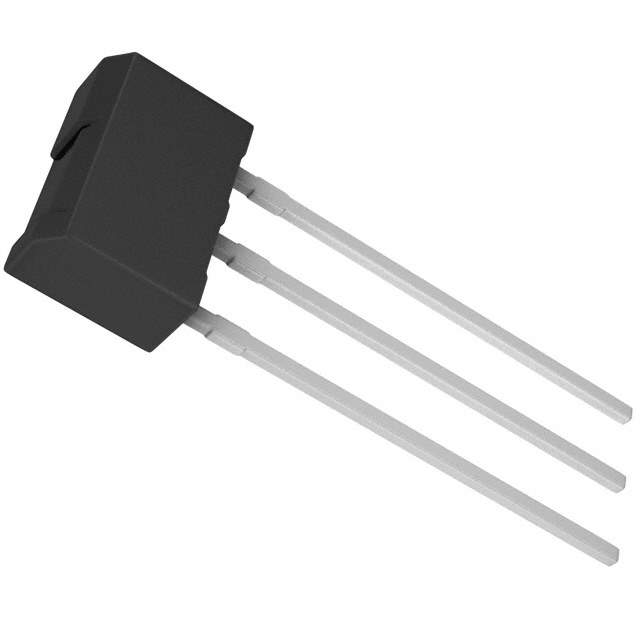

2SD1863TV2Q Real Image
Same model may have multiple batches, images only for reference.

2SD1863TV2Q

Part No 2SD1863TV2Q
Manufacturer Rohm Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS NPN 80V 1A ATV
Datasheet
2SD1863TV2Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Tape in Box
Part Status Obsolete(EOL)
Transistor Type NPN
Current - Collector (Ic) (Maximum) 1A
Voltage - Collector Emitter Breakdown (Maximum) 80V
Vce Saturation (Maximum) @ Ib, Ic 400mV @ 20mA, 500mA
Current - Collector Cutoff (Maximum) 1μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 120 @ 500mA, 3V
Power - Max 1W
Frequency - Transition 100MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package 3-SIP
Manufacturer Package ATV
Win Source Part Number 762844-2SD1863TV2Q
Popularity Medium
Supply and Demand Status Limited
Family Name 2SD1863Q
Introduction Date February 28, 2000
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 2SD1863TV2Q CAD Model

Description

The 2SD1863TV2Q is an electronic component manufactured by Rohm Semiconductor.

  • Maximum Power: 1W
  • Frequency Transition: 100MHz
  • Current - collector (Ic) (maximum): 1A
  • Voltage - collector emitter breakdown (maximum): 80V
  • Vce saturation (maximum) @ Ib, Ic: 400mV @ 20mA, 500mA
  • Current - collector cutoff (maximum): 1μA (ICBO)
  • DC current gain (hFE) (minimum) @ Ic, Vce: 120 @ 500mA, 3V
  • Introduction Date: February 28, 2000
  • Estimated EOL Date: Obsolete
