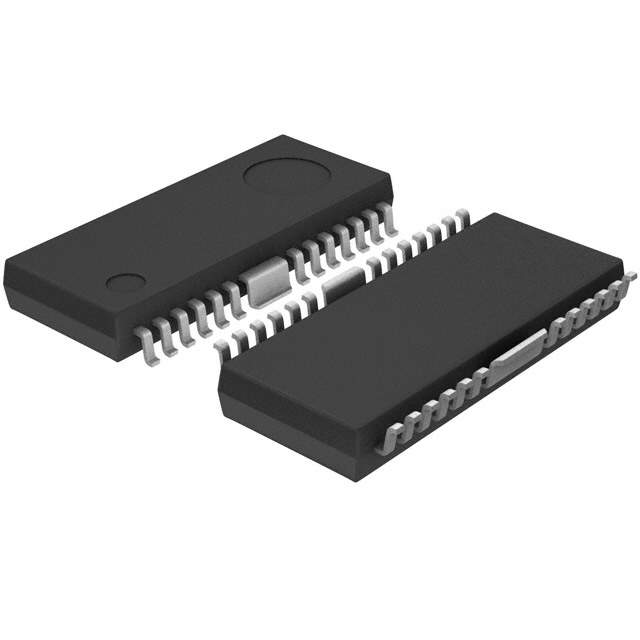

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Applications DC Motors, General Purpose
Load Type Inductive
Technology Power MOSFET
Rds On (Typ) 1.5 Ohm
Channel Output Current 1A
Supply Voltage - Operating 6 V to 15 V
Voltage - Load 6 V to 15 V
Temperature Range - Operating -40°C to 85°C (TA)
Fault Protection Current Limiting, Over Temperature, Over Voltage, UVLO
Mounting SMD (SMT)
Case / Package 25-HSOP
Win Source Part Number 049409-BD6226FP-E2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BD6226FP-E2 CAD Model

Description

Product Description

The BD6226FP-E2 is a compact motor driver IC offering superior operational efficiency. It is engineered for applications that require precise control over motor rotations and speeds while minimizing energy usage.

Features and Benefits

  • Excellent Heat Dissipation: Efficiently manages thermal output to maintain stable performance.
  • Wide Operating Range: Suitable for low to high voltage systems.
  • User-Friendly Configuration: Simplified pin layout for easy troubleshooting and maintenance.

Applications

  • Office Equipment
  • Consumer Electronics
  • Smart Toy Design

The BD6226FP-E2 strikes a perfect balance between functionality and energy efficiency, ideal for both commercial and industrial applications.
