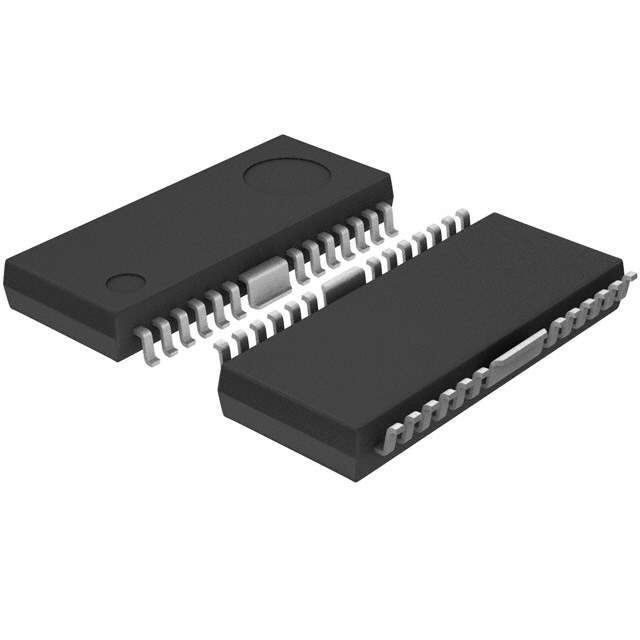

BD6232FP-E2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Motor Type - AC, DC Brushed DC
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Power MOSFET
Applications Media Player
Output Current 2A
Supply Voltage - Operating 6 V to 32 V
Voltage - Load 6 V to 32 V
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 25-HSOP
Win Source Part Number 011440-BD6232FP-E2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name BD6232
Introduction Date October 01, 2005
ECCN EAR99
Halogen Free Not Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian BD6232FP-E2 CAD Model

Description

BD6232FP-E2 Motor Driver IC

The BD6232FP-E2 is a versatile and high-performance motor driver IC catered to drive bi-directional motors efficiently. Known for its robustness, this IC can handle complex motor control applications.

Features and Benefits:

  • Robust and reliable high-performance motor driving capability
  • Flexibility with multiple motor control techniques, including PWM
  • Comprehensive protection: overheat, fuse lock, and soft start functionality
  • Thermal-resistant HSOP25 package for enhanced durability

Applications/Projects:

  • Industrial automation equipment
  • Domestic appliances
  • Automotive motor control systems
  • Precision robotic arms

The BD6232FP-E2's robust feature set ensures efficient and long-lasting performance for various motor control applications.
