Diodes Incorporated presents the AH5795-FDC-7, a high-performance, single-phase, Hall Effect fan driver IC designed for efficient and reliable operation in a compact package. This product is tailored for cooling fan applications in modern electronics, offering precision and durability for a wide range of voltage requirements.

Key Features

• Voltage Range: The AH5795-FDC-7 operates across a broad voltage range, making it versatile for use in various electronic devices.
• Output Driver: Equipped with a built-in output driver, it provides robust drive capability, ensuring consistent performance of the cooling fan.
• Protection Circuits: The device includes multiple protection features such as lock detection and automatic self-restart function to safeguard against operational anomalies.
• Temperature Range: With an operating temperature range that suits most environments, it is designed to perform reliably under varying conditions.
• Package: The AH5795-FDC-7 comes in a small form factor package, which allows for integration into space-constrained designs without compromising on functionality.

Applications

The AH5795-FDC-7 is ideal for a multitude of applications, including but not limited to:

• Desktop and laptop computers
• Server cooling systems
• Telecommunication equipment
• Portable cooling devices
• Consumer electronics

Technical Specifications

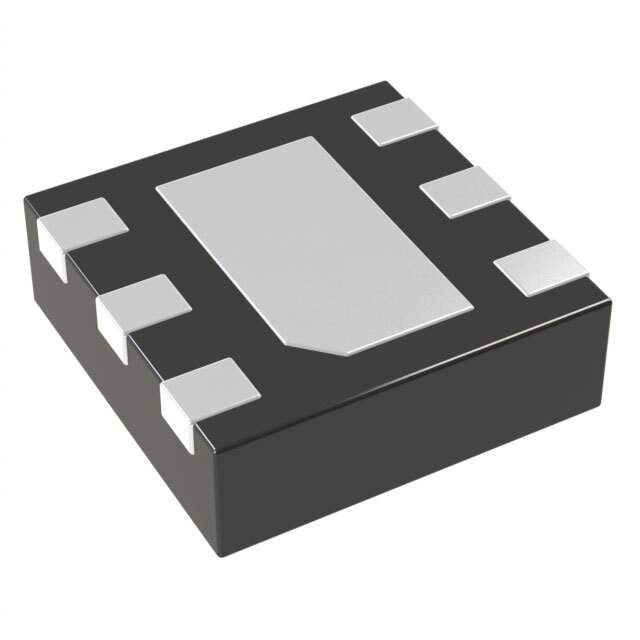

Parameter Value Supply Voltage (V<sub>CC) 3.5V to 16V Output Current (I<sub>OUT) 500mA (max) Operating Temperature -40°C to +125°C Package Type DFN2020-6 (Type F)

Quality and Reliability

Diodes Incorporated is committed to the highest standards of quality and reliability. The AH5795-FDC-7 has undergone rigorous testing to ensure it meets the stringent requirements for industrial and consumer electronic products.
