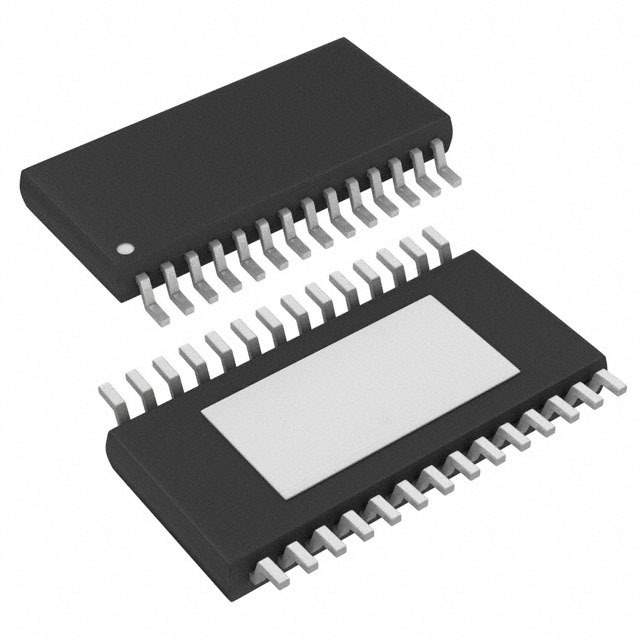

BD63823EFV-E2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Motor Type - AC, DC Brushed DC
Purpose Driver - Fully Integrated, Control and Power Stage
Technology DMOS
Step Resolution 1, 1/2
Applications Printer
Output Current 2A
Supply Voltage - Operating 19 V to 28 V
Voltage - Load 19 V to 28 V
Temperature Range - Operating -25°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 28-HTSSOP-B
Win Source Part Number 120926-BD63823EFV-E2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BD63823EFV-E2 CAD Model

Description

Overview

The BD63823EFV-E2 stepper motor driver is engineered for high-durability applications where consistent performance and reliability are paramount. It supports a broad range of voltages and current ratings, catering to diverse industrial needs.

Applications

  • Factory Automation
  • Printing Equipment
  • Home Appliances
  • Security Systems

Features and Benefits

  • Robust Performance: Capable of handling high workloads with ease.
  • Wide Voltage Range: Accommodates varied power supply conditions.
  • Enhanced Longevity: Built with materials that support extended operational life.
  • Comprehensive Protection: Overcurrent, overvoltage, and thermal protections ensure device safety.

Additional Details

The BD63823EFV-E2 is tailored for environments with high operational demands, providing both high efficiency and reliability to enhance the longevity of the machinery it powers.
